E-HR5M99SQZ | e-conolight

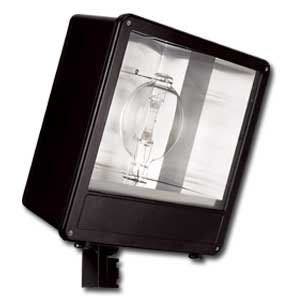

1000W MH | 106,000 Lumens Floodlight | Dark Bronze

Reg. $384.99
Review configuration
Not availableDiscontinued
Specs & Guide


1000-watt MH Floodlight with 106,000 lumens. Dark Bronze, UL Listed, 1-year limited warranty. If you liked this product try these.


  • Sturdy die-cast aluminum housing and lens frame, with dark-bronze polyester powder-coat finish
  • Tempered-glass lens is thermal, shock and impact resistant
  • Adjustable slip fitter model fits over 2-3/8" O.D. pipe
  • UL listed for wet locations
  • Notice:

    Fluorescent and some high intensity discharge (HID) lamps contain mercury, a hazardous substance regulated by Federal and State laws. Lamps that contain mercury will be marked with a circled "Hg" and “Contains Mercury”. These lamps must be recycled or disposed in accordance with local, state or federal law. For more information visit www.lamprecycle.com. If you are not the end user of these lamps you may be required by law to inform the purchaser that these lamps contain mercury and must be properly disposed or recycled. Check your State and Local laws for compliance.

    Recommended Use

  • General area lighting
  • Parking lots
  • Building facades
  • Typical mounting height

    25 to 50 feet
    65 CRI
    23-3/4" x 23-3/4" x 10-1/4"
    • 1000 Watt MH, BT56, Mogul Base, Clear, Enclosed Fixture
      1000 Watt MH, BT56, Mogul Base, Clear, Enclosed Fixture
    • Photocell - Button, 208V/240V/277V
      Photocell - Button, 208V/240V/277V
    • 120-volt External Photocell
      120-volt External Photocell
    • Ruud Ground Mount Post - Dark bronze for Premium Compact Floodlight
      Ruud Ground Mount Post - Dark bronze for Premium Compact Floodlight
    • 90° Wall Mount Bracket with Tenon
      90° Wall Mount Bracket with Tenon
    • Wall Mount Box with Tenon
      Wall Mount Box with Tenon
    • Wall Mount Bracket with Tenon | Dark Bronze
      Wall Mount Bracket with Tenon | Dark Bronze

    I have a 100' x 50' horse arena. if I placed two or three of the e -hr5m99sqz in the arena would it be bright enough? Also how long do the light bulbs last ? Thank you.

    Asked by: bmjk
    We do not offer photometrics on this fixture. The initial lumens of the lamp in this fixture is approximately 106,000, and the mean lumens are 85,500. The average rated life of this lamp is approximately 15,000 hours.
    Answered by: Janelle V
    Date published: 2017-11-27

    Do you have a 2 3/8 OD pipe with mounting plate for the 1000 MH fixtures. I have purchased 3 fixtures

    Asked by: Cowboy
    Here is a spec sheet containing our tenon mounting alternatives: http://www.e-conolight.com/pdf/SpecSheets/MOUNT_ALT.PDF. Please reassure the mounting option you choose is not only compatible with this fixture, but also installed in the way it is intended to be installed. Using or installing this hardware in any other way, we would NOT recommend as it may not be very safe. For additional questions or concerns, please call our customer service department at 1-888-243-9445.
    Answered by: Janelle V
    Date published: 2017-09-13

    Could you please provide the reflector dimension?

    Asked by: Tony Ye
    We warrant our fixtures with replacement parts. We do not sell replacement parts. Because we do not distribute replacement parts, we would not have this information available. The reflector for this fixture is only available for purchase with the entire fixture.
    Answered by: Janelle V
    Date published: 2017-08-10

    The Photo cell SKU: E-ACP2 will it work on 120 volts power source

    Asked by: Ron Burse
    The E-ACP2 is meant for 208-volt/240-volt/277-volt operation. The E-ACP1EXT is an available accessory for this fixture, meant for 120V operation.
    Answered by: Lauren P
    Date published: 2017-01-23

    Can you provide the Photometrics for E-HR5M99SQZ

    Asked by: Volker
    At this time, we do not have photometric reports for this fixture.
    Answered by: Heather
    Date published: 2014-05-23

    Can I get a 480 volt transformer for the E-HR5M99SQZ

    Asked by: erniefres
    At this time we do not offer 480V ballasts.
    Answered by: Heather
    Date published: 2014-01-22

    Where is the exact mounting point on thefitter mount fixture and with the wall mount 90 degree bracket is there enough space for it to tilt?

    Asked by: louis49
    If used with the 90-degree wall mount bracket (E-ACWM4DB), there are no tilt restrictions from 0 to 90 degrees.
    Answered by: Nikki
    Date published: 2013-11-08

    how many lumen? what is the output

    Asked by: samer
    This fixture has a lamp output of 106000 lumens. This information can be found on the details tab below.
    Answered by: Nikki
    Date published: 2013-10-22
