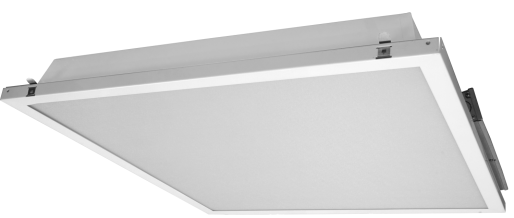

Replaces 2 x F32T8/U6 | 3500 Lumens Lay-In LED Troffer - 2 'x 2' E-TR22 Series | 3500K | White

Reg. $119.99
SKU: E-TR22L238

* Required Fields

Specs & Guide


Replaces 2 x F32T8/U6. 38-watt LED Lay-In Troffer - 2'x2' with 3700+ delivered lumens. 5-year limited warranty.

Recommended Use

For use in office, educational, retail, commercial and institutional applications
2 x F32T8/U6
3-3/4" x 23-5/8" x 23-5/8"
60,000 Hours
120V through 277V Operation
-18˚C (0˚F)
There are no accessories for this product.
Replaces 2 x F32T8/U6 | 3500 Lumens Lay-In LED Troffer - 2 'x 2' E-TR22 Series | 3500K | White is rated 4.0 out of 5 by 2.
Rated 3 out of 5 by from nice light overall these are good quality fixtures with excellent light output. However, I found installation to be a challenge. The wiring compartment was way too small considering (particularity in retrofit applications) there can be three 12-2 MC cables to try to stuff in there. To access the wiring compartment you need to remove two very tiny screws that are easily dropped and lost. Also there are no disconnecting means as required by the NEC and even though theoretically you should never have to change a ballast, an inspector may challenge you for no having it or you will need to supply your own. I feel there could be some easy installation features that could be added to make this fixture a 5 star modeled after a typical 2x2 or 2x4 troffer. If your using these in a bid for a project be sure to add at least %50 to %75 percent more install time per fixture
Date published: 2015-12-30
Rated 5 out of 5 by from Quality Fixture Replaced older t12 u-tube fixtures (78 watt fixtures) with these. These are brighter and have excellent light distribution.
Date published: 2015-12-24
  • y_2018, m_3, d_18, h_1
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.7
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_E-TR22L238, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_econolight

I there a manufacturer warranty on the product? If so, what are the details. I have a fixture that is 1 1/2 years old and the driver is bad. Can a replacement driver be purchased?

Asked by: Moser586
We are sorry to hear this! This fixture has a 5 year fixture for fixture replacement warranty. Here is a copy of the spec sheet for convenience: http://www.e-conolight.com/pdf/SpecSheets/eco_spc_tr22l2_series.pdf. Warranty claims can be submitted directly to our Technical Service Department by filling out and submitting this form: http://www.e-conolight.com/return-policy. If any additional assistance is needed, please do not hesitate to contact our customer service department at 1-888-243-9445 for immediate assistance.
Answered by: Janelle V
Date published: 2018-01-25

this says out of stock, can I still order it? I need 1 to match some existing.

Asked by: kellen
This fixture is discontinued and no longer available. This troffer has been replaced by our E-TFA03A series 2' x 2' LED lay-in troffers. Here is the spec sheet for our E-TFA03A series LED lay-in troffers: http://www.e-conolight.com/pdf/SpecSheets/eco_spc_tfa03_series.pdf.
Answered by: Janelle V
Date published: 2017-12-19

Will these work in a non heated area.

Asked by: Ant3
This fixture's minimum operating temperature is: -18˚C (0˚F)
Answered by: Ashley H
Date published: 2016-12-30

is the unit diimmable

Asked by: concept
Yes, these fixtures are dimmable.
Answered by: Lauren P
Date published: 2016-11-04

Are these dimmable

Asked by: Ralf
Yes, these fixtures are dimmable.
Answered by: Lauren P
Date published: 2016-11-03

Can I get emergency backup on these fixtures?

Asked by: RickBearup
Emergency backups are not currently available for this fixture.
Answered by: Ashley H
Date published: 2016-04-11

do you have 24 x 24 LED to replace a 3 lamp FT40 narrow u tube 24 x 24 troffer? need more light

Asked by: businawreck
We do not currently offer a fixture that is a direct replacement for FT40 lamps.
Answered by: Ashley H
Date published: 2016-03-15

at a ceiling ht. of 112 inches  what would the light spread be at the floor ?

Asked by: drk 151
Please refer to the Lighting Layout Tool (e-conolight.com/lightinglayouts/index.html) for a layout specific to your mounting height and room size.
Answered by: Ashley H
Date published: 2016-02-17
