E-XELR Series LED Edgelit Exit Sign w/ Battery Backup - Recessed | e-conolight
Drag image to spin
360 E-XELR Series LED Edgelit Exit Sign w/ Battery Backup - Recessed | e-conolight

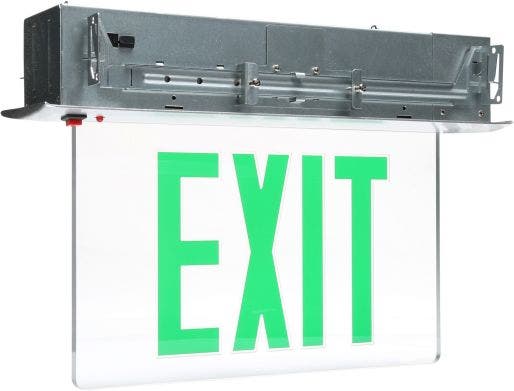

LED Recessed Edgelit Exit Sign with Battery Backup (Single Face) E-XEL Series | Green Letters

Review configuration
In stock
Specs & Guide


LED Recessed Edgelit Exit Sign with 6" green letters (single face). Battery backup, UL Listed, mounting hardware included, 5-year limited warranty.

Recommended Use

  • Exit identification & emergency lighting
  • Indoor commercial, retail & industrial applications
    3.6W / 4W
    7-5/8" H x 12-5/8" H x -
    120V or 277V
    32°F (Maximum: 122°F)
    There are no accessories for this product.

    Is the AC on indicator light supposed to be red when it's working? We just had an inspection and we were told it is supposed to be green to indicate that the battery is working.

    Asked by: Robert1138
    This requirement (for the LED indicator to be GREEN when battery is connected) came into effect a few years ago. This model was listed by UL earlier than that, so it doesn’t have that feature incorporated. When UL made the change, it was only needed to be added to newly designed models. For additional questions, please call our customer service department at 1-888-243-9445.
    Answered by: Janelle V
    Date published: 2017-12-02

    Are these supposed to be lit up all the time? We had a power outage and all of them went dark so im not sure if this is a battery back up problem or not. Also when hitting the test button it would cut the power off then turn it back on. is this correct?

    Asked by: BobWood
    This fixture should stay lit at all times, and then when the power goes out it should switch automatically to operate off of the 90-minute backup battery. Your description of how the test button is functioning sounds accurate; however, these should stay lit during a power outage for up to 90 minutes. This fixture has a 5 year limited warranty. Here is the spec sheet for convenience: http://www.e-conolight.com/pdf/SpecSheets/eco_spc_xelr_series.pdf. This sounds like it may be a warranty issue. For assistance with submitting a warranty claim, please have the original purchaser call our customer service department at 1-888-243-9445 so we can help fix this.
    Answered by: Janelle V
    Date published: 2017-11-30

    Shipping time?

    Asked by: Glor
    Our availability changes frequently. To inquire on lead times please utilize our WebChat or call our customer service department at 1-888-243-9445, in order for us to provide you with the most updated and accurate information.
    Answered by: Janelle V
    Date published: 2017-07-06

    Can this fixture be side mounted? What is the shipping cost to NC?

    Asked by: Pierre
    This fixture is meant to be mounted in drywall or drop ceilings. For side mounting options, please see our E-XEL1 Series and our E-XPL2 Series. Please contact customer service at 888-243-9445 for shipping information, pricing, availability and lead times.
    Answered by: Lauren P
    Date published: 2016-10-05
