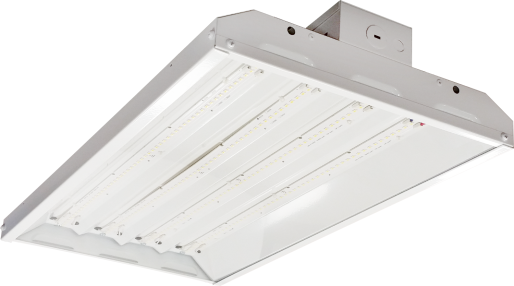

LED Premium Linear High Bay | E-HLD13A Series | 13000 Lumens | 4000K | White

This product has been discontinued

SKU: E-HLD13A-HK40UW
Replaces 6-Lamp - T8 32W
13000 Lumens

Product Overview

Replaces 6 Lamp - T8 32W. 108-watt Premium LED Linear High Bay with 13000 delivered lumens. 4000K, white, DLC and UL Listed, 5-year limited warranty.

Features

Premium Highlights:
  • 120 lumens per watt - plus, dimming and surge protection come standard
  • A footprint that's 80% smaller than comparable technology
  • Consumes less power, while producing the same light output
Housing:
  • Vented steel housing provides thermal management through natural convection
Lens Assembly:
  • Clear acrylic lens
Mounting:
  • Included v-hook and chain
  • Optional pendant mount kit (sold separately)
UL Listed:
  • Damp locations

Recommended Use

  • Warehouses
  • Industrial
  • Retail

Guides & Info

Specifications

  • Applications Industrial, Storage Facilities, Storefront Lighting
  • Certifications UL Listed, Damp Locations, DLC Standard
  • Color Accuracy ≥ 80 CRI
  • Dimensions 3-3/5" H x 12-3/5" W x 23-4/5" L
  • Input Voltage Universal (120V through 277V Operation)
  • Lifespan Estimated >70,000 hours of maintenance-free operation to L70 at 25°C (77°F)
  • Light Output 13000 Lumens
  • Power Consumption 108W
  • Replaces 6 x F32T8
  • Shipping Weight 12.70 (lbs.)
  • Typical Mounting Height 15 to 25 feet
  • warranty 5 Year
