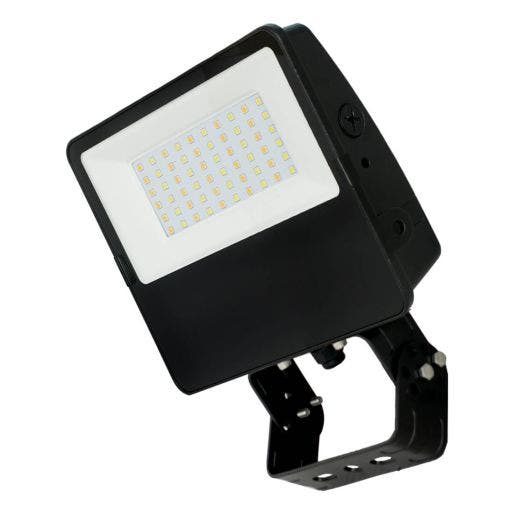

C-Lite LED Flood Light w/ Adjustable Yoke Mount | CCT & Wattage Selectable | C-FL-A-FLW Series | Up to 17,700 Lumens | Dark Bronze
Back-Order: Available by 06/07/2023
$199.99 Was $219.99
SKU: C-FL-A-FLW-S17L-SCCT-YK-DB
Replaces 320W PSMH
Up to 17,700 Lumens
Up to 17,700 Lumens
Product Overview
Replaces 320W PSMH. C-Lite LED Flood Light w/ adjustable yoke mount, wattage selectable up to 130W, up to 17,700 delivered lumens, CCT selectable (3000K, 4000K or 5000K), cULus Listed, dark bronze, 5-year limited warranty.
Additional Benefits:
- Designed and built to last: surpassed rigorous Cree Lighting® testing
- Selectable CCT with a small switch
- 4kV Surge Protection
- Wattage selectable to 75% or 50% lumen output
- Mounting installed prior to shipment
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-FL-A-FLW Series Download File
- Instruction Manual: C-FL-A-FLW Download File
- IES File: C-FL-A-FLW-S17L-SCCT_3000K Download File
- IES File: C-FL-A-FLW-S17L-SCCT_4000K Download File
- IES File: C-FL-A-FLW-S17L-SCCT_5000K Download File
Specifications
- Applications Building Facades, Security, Signs & Monuments
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, DLC Premium, RoHS, Wet Locations
- Color Temperature (CCT) Selectable
- CRI (Color Accuracy) ≥ 70 CRI
- Dimensions 3-1/4" D x 12-1/2" W x 17-1/2" H
- Housing Dark bronze, durable die-cast aluminum housing that helps dissipate the heat to ensure a long life.
- Input Voltage Universal (120V - 277V)
- Lens Material Shatter resistant tempered glass lens that won't yellow or crack over time
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 17,700 Lumens
- Mounting Details Adjustable yoke mount (comes with 3-foot leads for easy installation)
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Selectable, up to 130W
- Replaces (Comparable to) 320W PSMH
- Shipping Weight 9.44 (lbs.)
- Typical Mounting Height > 25 feet
- warranty 5-Year
