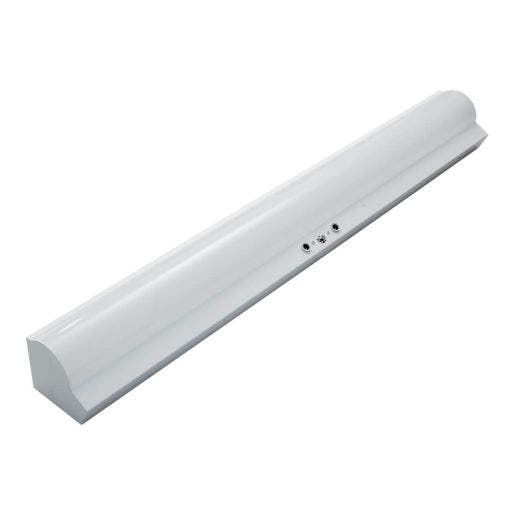

C-Lite LED Stairwell Light | CCT & Wattage Selectable | Up to 7300 Lumens | 120-347V | Ultrasonic Motion Sensor | White
Your Price $153.99 $189.99
SKU: C-SW-A-S66L-SCCT-US-UC-WH
Replaces 1 or 2 Lamp - T5HO fixtures
Up to 7300 Lumens
Up to 7300 Lumens
Product Overview
Replaces 1 or 2 Lamp T5HO fixtures. C-Lite LED Stairwell Light - Wattage selectable (35W/50W/60W) and CCT selectable (3000K/4000K/5000K), up to 7300 lumens. Factory installed motion sensor comes standard. cULus Listed, 5-year limited warranty.
Additional Benefits:
- Integrated ultrasonic motion sensor ensures more accurate motion detection compared to microwave sensors
- External dip switches provide easy adjustments of dimming level, detection sensitivity and standby timing
- 150° beam angle
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: C-SW-A Series Download File
- Spec Sheet: C-SW-A Series Download File
- IES File: C-SW-A-S66L-SCCT-US-UC-WH_3500K Download File
- IES File: C-SW-A-S66L-SCCT-US-UC-WH_4000K Download File
- IES File: C-SW-A-S66L-SCCT-US-UC-WH_5000K Download File
Specifications
- Applications Commercial, Hallways & Stairways, Parking Garage Structures, Security, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 4
- Certifications cULus, Damp Locations, DLC Premium, RoHS
- Color Temperature (CCT) Selectable
- Color Accuracy ≥ 80 CRI
- Dimensions 47-7/8" L x 4-7/8" W x 5-5/8" H
- Housing Galvanized steel with a white powder-coat finish
- Input Voltage Universal (120V - 347V)
- Lens Material Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output Up to 7300 Lumens
- Mounting Details Keyhole slots for surface wall mounting. Template included for mounting hole location
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 35W/50W/60W
- Replaces 1 x F54T5HO, 2 x F54T5HO
- Shipping Weight 8.03 (lbs.)
- Typical Mounting Height 8 to 10 Feet
- warranty 5-Year
