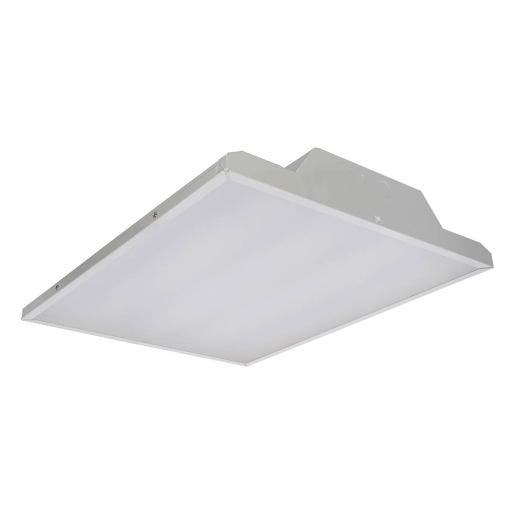

C-Lite Linear LED High Bay Light | C-PHB-C-L2F Series | CCT & Wattage Selectable | Up to 44,700 Lumens | 277-480V | White

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 22.81ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Ships in: 3-4 Weeks
$289.99

Knock this price down to $260.99. Join e-cono+ for free today .

SKU: C-PHB-C-L2F-S42L-SCCT-UH-WH
Replaces 8-Lamp - T5HO 54W
Up to 44,700 Lumens
Go To Accessories
Go To Accessories
Save to Favorites

Product Overview

Replaces 8 x F54T5HO. C-Lite LED Linear High Bay with up to 44,700 delivered lumens. CCT Selectable: 4000K, 4500K and 5000K. Dual-wattage selectable: 205W and 290W, 277-480V, cULus Listed, 5-year limited warranty.

warning!

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Specifications

  • Applications Gymnasium, Industrial, Manufacturing, Retail, Warehouses
  • Factory Installed Emergency Backup No
  • Emergency Backup No
  • FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
  • Certifications cULus, Damp Locations, DLC Premium, RoHS, Dimmable
  • Color Temperature (CCT) Selectable
  • Color Accuracy ≥ 80 CRI
  • Dimensions 23-7/8" L x 19" W x 3-3/8" H
  • Housing Steel construction, white polyester powder-coat finish
  • Input Voltage 277 through 480V
  • Lens Material Integrated frosted polycarbonate diffuser lens
  • Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
  • Light Output Up to 44,700 Lumens
  • Mounting Details V-Hooks (2) included, chains sold separately. Pendant/conduit mount supplied by others.
  • Operating Temperature Maximum 104°F (40°C)
  • Operating Temperature Minimum -40°F (-40°C)
  • Power Consumption 205W/290W
  • Replaces 8 x F54T5HO
  • Shipping Weight 13.43 (lbs.)
  • Typical Mounting Height > 25 feet
  • warranty 5 year

Accessories

C-Lite 6-Foot Chain Suspension Kit | Steel
C-Lite 6-Foot Chain Suspension Kit | Steel
$17.99
Your price could be $16.19. Join e-cono+ .
SKU: C-ACC-A-CHAIN-6FT
Contains 2 chains per kit.
C-Lite 12-Foot Chain Suspension Kit | Steel
C-Lite 12-Foot Chain Suspension Kit | Steel
$22.99
Your price could be $20.69. Join e-cono+ .
SKU: C-ACC-A-CHAIN-12FT
Contains 2 chains per kit.
C-Lite LED Linear High Bay Bi-Level PIR Sensor | 120-480V | White
C-Lite LED Linear High Bay Bi-Level PIR Sensor | 120-480V | White
Your Price $75.99 $80.99
Your price could be $68.39. Join e-cono+ .
SKU: C-ACC-B-PIR
For use with C-PHB-C and C-HB-B-L2F series only.
C-Lite LED Linear High Bay Wire Guard | C-PHB-C-L2F-31L, 39L, 42L Series | Silver
C-Lite LED Linear High Bay Wire Guard | C-PHB-C-L2F-31L, 39L, 42L Series | Silver
$34.99
Your price could be $31.49. Join e-cono+ .
SKU: C-PHB-C-WG2
For use with C-PHB-C-L2F-31L, 39L, 42L series only.
C-Lite 3-Foot Chain Suspension Kit | Steel
C-Lite 3-Foot Chain Suspension Kit | Steel
$13.99
Your price could be $12.59. Join e-cono+ .
SKU: C-ACC-A-CHAIN-3FT
Contains 2 chains per kit.
C-Lite PIR Motion Sensor | 120-277V | White
C-Lite PIR Motion Sensor | 120-277V | White
$59.99
Your price could be $53.99. Join e-cono+ .
SKU: C-ACC-B-PIR-UL
For use with C-PHB-C, C-STRIP-B, C-WR-B-WLIN4 and C-WR-A-WW4 Series only.

How much light do you need? Create a custom plan with our simple free tools.

INDOOR LIGHTING LAYOUT TOOL > OUTDOOR LIGHTING LAYOUT TOOL >

Customers Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.53ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 9.22ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Product Comparison

Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Color Temperature (CCT)
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Additional Documents
C-PHB-C-L2F Series C-Lite Linear LED High Bay Light | C-PHB-C-L2F Series | CCT & Wattage Selectable | Up to 44,700 Lumens | 277-480V | White
$289.99
C-PHB-C-L2F-S42L-SCCT-UH-WH
Replaces 8-Lamp - T5HO 54W
Up to 44,700 Lumens
205W/290W
277 through 480V
5 year
Selectable
Yes
cULus, Damp Locations, DLC Premium, RoHS, Dimmable
Steel construction, white polyester powder-coat finish
V-Hooks (2) included, chains sold separately. Pendant/conduit mount supplied by others.
Integrated frosted polycarbonate diffuser lens
C-HB-A-LB2 Series Linear High Bay C-Lite Linear LED High Bay Light | C-HB-A-LB2 Series | CCT & Wattage Selectable | Up to 26,200 Lumens | 277-480V | White
Your Price $209.99 $219.99
C-HB-A-LB2-S24L-SCCT-UH-WH
Replaces 6-Lamp - T5HO 54W
Up to 26,200 Lumens
180 W
277 through 480V
5 Year
Selectable
Yes
cULus, Damp Locations, DLC Premium, RoHS, Dimmable
Housing frame is stamped aluminum with a high reflectance, white powder-coat finish. Light bar housings and wiring compartment made from extruded aluminum.
V-Hooks (2) included, chains sold separately. Pendant/conduit mount supplied by others.
Polycarbonate
C-HB-A-LB2 Series Linear High Bay C-Lite Linear LED High Bay Light | C-HB-A-LB2 Series | CCT & Wattage Selectable | Up to 26,200 Lumens | w/6-foot Hardwired Cord | 277-480V | White
Your Price $244.99 $254.99
C-HB-A-LB2-S24L-SCCT-UH-WH-C6
Replaces 6-Lamp - T5HO 54W
Up to 26,200 Lumens
180 W
277 through 480V
5 Year
Selectable
Yes
cULus, Damp Locations, DLC Premium, RoHS, Dimmable
Housing frame is stamped aluminum with a high reflectance, white powder-coat finish. Light bar housings and wiring compartment made from extruded aluminum.
V-Hooks (2) included, chains sold separately. 6-foot 5-wire 600W cord included. Pendant/conduit mount supplied by others.
Polycarbonate
C-HB-A-LB2 Series Linear High Bay C-Lite Linear LED High Bay Light | C-HB-A-LB2 Series | CCT & Wattage Selectable | Up to 26,200 Lumens | 277-480V | White | w/6-foot Hardwired Cord Option
OOS
Your Price $209.99 - $244.99 $219.99 - $254.99
C-HB-A-LB2-S24L-SCCT-UH
Replaces 6-Lamp - T5HO 54W
Up to 26,200 Lumens
180 W
277 through 480V
5 Year
Selectable
Yes
cULus, Damp Locations, DLC Premium, RoHS, Dimmable
Housing frame is stamped aluminum with a high reflectance, white powder-coat finish. Light bar housings and wiring compartment made from extruded aluminum.
V-Hooks (2) included, chains sold separately. 6-foot 5-wire 600W cord included. Pendant/conduit mount supplied by others.
Polycarbonate
