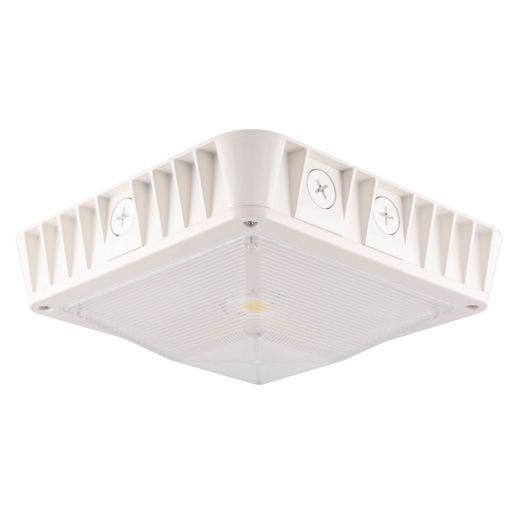

C-Lite Quick Connect LED Canopy Light | C-CP-B-BRQ-SCCT Series | Up to 10,300 Lumens | CCT & Wattage Selectable | White
Your Price $119.99 $159.99
SKU: C-CP-B-BRQ-S10L-SCCT-WH
Replaces 250W PSMH
3230-10,300 Lumens
3230-10,300 Lumens
Product Overview
Replaces 250W PSMH. C-Lite Quick Connect LED Canopy Light with field selectable CCT (3000K, 4000K or 5000K) and Wattage (83W/72W/49W/26W), with up to 10,300 delivered lumens, dark bronze, cULus Listed, 5-year limited warranty.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: C-CP-B-BRQ-SCCT Series Download File
- IES Files: C-CP-B-BRQ-S10L-SCCT Series Download File
- Spec sheet: C-CP-B-BRQ-SCCT Download File
Specifications
- Applications Commercial, Exterior Canopies, Perimeter Lighting
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 1
- Certifications cULus, DLC Standard, RoHS, Wet Locations
- Color Temperature (CCT) Selectable
- Color Accuracy ≥ 70 CRI
- Dimensions 12-3/4" L x 12-3/4" W x 4-3/8" D
- Housing UV-resistant powder coated die cast aluminum housing
- Input Voltage Universal (120V - 277V)
- Lens Material UV-stabilized, high impact polycarbonate diffuser lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 10,300 Lumens
- Mounting Details Easy, user-friendly installation with included quick mount bracket directly mounts to a 3-1/2" octagonal, 4" square or 4" octagonal junction box
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 83W/72W/49W/26W
- Replaces 250W PSMH
- Shipping Weight 12.13 (lbs.)
- Typical Mounting Height 15 to 25 feet
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Color Temperature (CCT)
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Additional Documents
C-CP-B-BRQ-S10L-SCCT-WH
Replaces 250W PSMH
3230-10,300 Lumens
3230-10,300 Lumens
83W/72W/49W/26W
Universal (120V - 277V)
5 Year
Selectable
Yes
cULus, DLC Standard, RoHS, Wet Locations
1
UV-resistant powder coated die cast aluminum housing
Easy, user-friendly installation with included quick mount bracket directly mounts to a 3-1/2" octagonal, 4" square or 4" octagonal junction box
UV-stabilized, high impact polycarbonate diffuser lens
C-CP-D-SQ-S13L-40K-WH
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Up to 88W
Universal (120V - 277V)
5 year
4000K
Yes
cULus, DLC Premium, RoHS, Dimmable, IP65, Wet Locations
6
White, low copper die-cast aluminum housing, polyester powder-coat
Surface and pendant; knockouts provided for mounting directly to 4" octagonal or square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
UV-stabilized acrylic lens
C-CP-D-SQ-S13L-50K-WH
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Up to 88W
Universal (120V - 277V)
5 year
5000K
Yes
cULus, DLC Premium, RoHS, IP65, Wet Locations
6
White, low copper die-cast aluminum housing, polyester powder-coat
Surface and pendant; knockouts provided for mounting directly to 4" octagonal or square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
UV-stabilized acrylic lens
C-CP-D-SQ-S13L-40K-DB
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Up to 88W
Universal (120V - 277V)
5 year
4000K
Yes
cULus, DLC Premium, RoHS, Dimmable, IP65, Wet Locations
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV-stabilized acrylic lens
C-CP-D-SQ-S13L-50K-DB
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Up to 88W
Universal (120V - 277V)
5 year
5000K
Yes
cULus, DLC Premium, RoHS, Dimmable, IP65, Wet Locations
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV-stabilized acrylic lens
C-CP-D-SQ-13L
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Up to 88W
Universal (120V - 277V)
5 year
Varies Per SKU
Yes
cULus, DLC Premium, RoHS, Dimmable, IP65, Wet Locations
6
Dark bronze or white, low copper die-cast aluminum housing, polyester powder-coat
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
UV-stabilized acrylic lens
C-CP-D-SQ-S6L-SCCT
Replaces 175W MH
Up to 6710 Lumens
Up to 6710 Lumens
Up to 45W
Universal (120V - 277V)
5 year
Selectable
Yes
cULus, DLC Premium, RoHS, IP65, Wet Locations
6
White, low copper die-cast aluminum housing, polyester powder-coat
Surface and pendant; knockouts provided for mounting directly to 4" octagonal or square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
UV-stabilized acrylic lens
