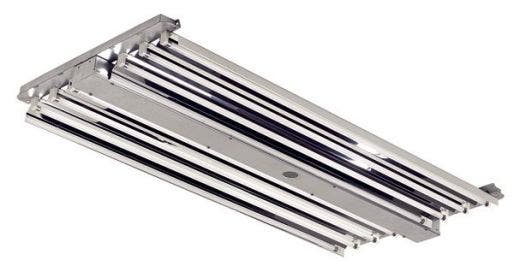

LIMITED SUPPLIES - Commercial 6-lamp Linear Fluorescent fixture, 32W T8 with specular aluminum reflectors. Lamps ordered separately.
- Length of wire in hard-wired fixtures is 6 inches
- Quality die-formed galvanized steel ballast housing and cover
- Supplied with high efficiency (95% total reflectance) MIRO 4™ specular reflectors that provide medium light distribution
- 120V through 277V instant start GE® UltraMax® High Efficiency ballast
- Includes two wire-form hangers for mounting
- Access cover for 3/4-inch conduit and wire entry for hard wiring
- Recommended minimum operating temperature: 40° F (+5° C)
- 24-inch wide design accommodates NFPA 13 and Factory Mutual codes
- UL Listed for damp locations
- Fixtures are custom manufactured specifically for your order
- 5-year warranty
- Note: Fixtures must be mounted a minimum of 7.5-inches below ceiling
- Industrial Sites
- Retail Sites
- Comparable Performance: 250W-400W Probe Start Metal Halide High Bay.
Guides & Info
Color Temperature No
CRI (Color Accuracy) 80 CRI
Dimensions 3.3" H x 24" W x 48.8" L
Shipping Weight 21.76 (lbs.)
Input Voltage 120V
Typical Mounting Height 20 to 35 feet
CALIFORNIA TITLE 20 This item may not be shipped into California. Click here for more details.
