LED Exit & Emergency Light Combo | E-XCL Series | Single or Double Face | Green Letters | Battery Backup | Remote Capable

This product has been discontinued

SKU: E-XCL2GRCW
Remote Capable

Product Overview

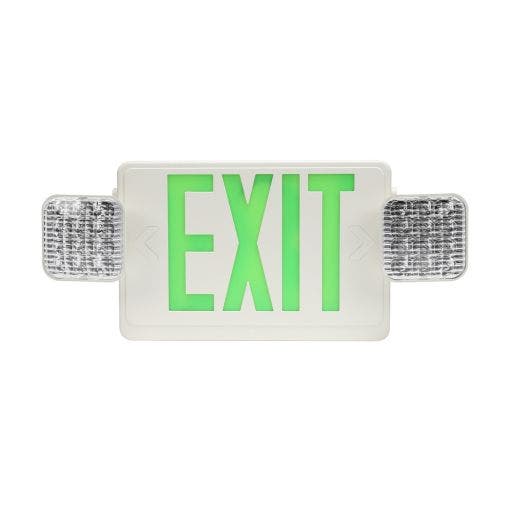

LED Exit Sign with two adjustable 1-watt LED lighting heads and 6” green letters (single / double face). Remote capability - remote unit will run up to three single LED remote heads. Battery backup, UL Listed, mounting hardware included, 5-year limited warranty.

Features

Housing:
  • Injection-molded, 5VA flame retardant thermoplastic housing
  • Easy to remove and replace chevrons
Mounting:
  • Easy-snap mounting canopy included for top mounting
  • Universal knockout pattern on back plate for wall mount
  • Mounting hardware included
Includes:
  • Two adjustable 1W LED lighting heads
  • Sealed, 9.6V maintenance-free nickel cadmium battery backup (90 min.)
  • Charge/power on indicator LED (Battery recharges within 24 hours via internal solid-state, two-rate charger)
  • Push-to-test switch
Certifications:
  • UL Listed for damp locations
  • Meets UL924, NFPA 101 Life Safety Code, NEC & OSHA codes

Recommended Use

  • Exit identification & emergency lighting
  • Indoor commercial, retail & industrial applications
warning!

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Specifications

  • Certifications cULus, Damp Locations
  • Dimensions 9" H x 20" W x 4-1/2" D
  • Input Voltage 120V or 277V
  • Light Output (Per Head): 45 Lumens
  • Operating Temperature Maximum 104°F (40°C)
  • Operating Temperature Minimum 32°F (0°C)
  • Power Consumption 3.0W / 3.2W
  • Shipping Weight 4.60 (lbs.)
  • Typical Mounting Height See Local Code
  • warranty 5 Year
