6" green letters and two adjustable 1-watt LED lighting heads. 5-year limited warranty.
Drag image to spin
360 6" green letters and two adjustable 1-watt LED lighting heads. 5-year limited warranty.

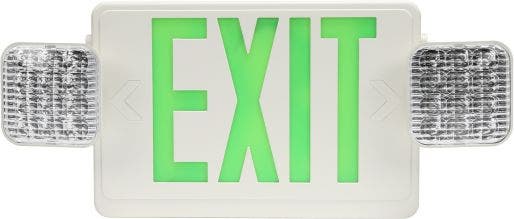

LED Exit Sign / Emergency Light with Battery Backup (Double Face) E-XCL Series | 5000K | Green Letters

$29.99
SKU: E-XCL2GW
Review configuration
In stock
Ratings
Details
Specs & Guide
Accessories
Reviews
Q&A

Overview

LED Exit Sign with two adjustable 1-watt LED lighting heads and 6” green letters (single / double face). Battery backup, UL Listed, mounting hardware included, 5-year limited warranty.

Features

Housing:
  • Injection-molded, 5VA flame retardant thermoplastic housing
  • Easy to remove and replace chevrons
    • Mounting:
  • Easy-snap mounting canopy included for top or end mounting
  • Universal knockout pattern on back plate for wall mount
  • Mounting hardware included
    • Includes:
  • Two adjustable 1W LED lighting heads
  • Sealed, 9.6V maintenance-free nickel cadmium battery backup (90 min.)
  • Charge/power on indicator LED (Battery recharges within 24 hours via internal solid-state, two-rate charger)
  • Push-to-test switch
    • Certifications:
  • UL Listed for damp locations
  • Meets UL924, NFPA 101 Life Safety Code, NEC & OSHA codes

    • Recommended Use

  • Exit identification & emergency lighting
  • Indoor commercial, retail & industrial applications

    • Download

    Spec Sheet IES Files Instruction Manual
    5 Year Limited Warranty UL Listed Suitable for Damp Locations Non-Dimmable
    LIGHT OUTPUT
    45 Lumens
    COLOR TEMP
    Cool White (5000K)
    POWER CONSUMPTION
    3.7W / 3.8W
    DIMENSIONS
    9" H x 20" W x 4-1/2" D
    SHIPPING WEIGHT (LBS.)
    4.20
    INPUT VOLTAGE
    120V or 277V
    OPERATING MINIMUM
    32°F (Maximum: 104°F)
    There are no accessories for this product.
    LED Exit Sign / Emergency Light with Battery Backup (Double Face) E-XCL Series | 5000K | Green Letters is rated 4.0 out of 5 by 2.
    Rated 3 out of 5 by from Decent Fixture We just installed 25 of these units in an apartment building. The installation was pretty straight forward and the signs are of decent quality. The breakouts in the back of the unit for mounting were a bit tough, a power drill makes easy work of them though. It would have been nice if screws to mount the unit to the box. Included are screws to mount the unit to the mounting bracket and a set of wire nuts. For the price, we would consider using this product again.
    Date published: 2016-08-12
    Rated 5 out of 5 by from Works great! Easy to install and looks great! Have had many compliments
    Date published: 2017-05-17
    • y_2017, m_8, d_18, h_9
    • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
    • cp_1, bvpage1
    • co_hasreviews, tv_0, tr_2
    • loc_en_US, sid_E-XCL2GW, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
    • clientName_econolight

    What is the voltage

    Asked by: Joe S
    120V or 277V is the operation voltage for the fixture.
    Answered by: Sam S
    Date published: 2017-07-01

    does this come in single face

    Asked by: harry o
    This fixture can be used a a single faced or double faced exit sign. The fixture comes with one EXIT side and an extra EXIT faceplate. The extra faceplate may be swapped with the backplate to make it a 2-sided fixture, or the backplate can be kept in place to create the desired single-faced sign
    Answered by: Lauren P
    Date published: 2017-07-25

    Is there a side mount for this? If you took off one side light and have it stick out from wall.

    Asked by: Monoglot
    This fixture may be ceiling mounted and wall mounted. Click on the link to view the installation guide for more details: http://www.e-conolight.com/pdf/Instructions/E-XCL%20Series_1.pdf.
    Answered by: Lauren P
    Date published: 2016-09-19

    Do the LED background lights work solely with commercial power? Or do you have to have the battery plugged in also? When I installed them LED's only came on after after installing the battery.

    Asked by: Eric154
    Yes, this fixture needs to be connected to the battery only after the AC connection has been made.
    Answered by: Ashley H
    Date published: 2016-04-13

    Do the exit sign have to be connect to electricity in the home?

    Asked by: PatS
    Yes, the fixture needs to be connected in order to charge the battery backup.
    Answered by: Ashley H
    Date published: 2015-09-25

    Is this particular unit double sided?

    Asked by: Ecec
    Yes, please visit the product page for a 360˚ view. Simply drag your curser over the product to spin.
    Answered by: Ashley H
    Date published: 2015-07-29

    For a church application what is required for the letters on exit lights, red or green??

    Asked by: Burt
    Please refer to your local regulations for the answer to your question.
    Answered by: Nikki
    Date published: 2015-01-25
