LED Shoebox-Style Area Light | E-SBA5 Series | Type V | 4000K | Dark Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-SBA5L110NZ

Replaces 320W PSMH / 400W MH
16100 Lumens

Product Overview

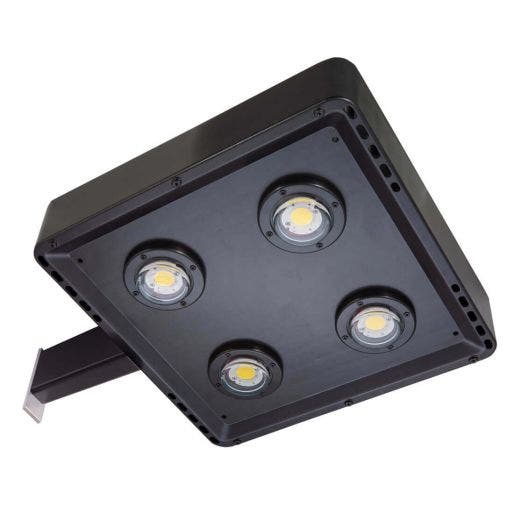

Replaces 320-watt pulse start metal halide (PSMH) / 400-watt metal halide (MH). 119-watt LED Shoebox-Style Area Light - Type V distribution - with 16100 delivered lumens. 4000K, dark bronze, UL Listed, 5-year limited warranty.

Guides & Info

Instruction Manual: E-SBA5 Series Download File
Manuel De Instruccion: E-SBA5 Series Download File
Spec Sheet: E-SBA5 Series Download File
IES: E-SBA5L110NZ Download File
Light Pole & Bullhorn EPA Data Download File

Specifications

Applications General Area Lighting, Parking Areas, Perimeter Lighting
Certifications Classified UL Listed, Wet Locations
Color Temperature (CCT) 4000K
CRI (Color Accuracy) ≥ 70 CRI
Dimensions 4-1/5" H x 16-1/5" W x 16-1/5" L
Housing Durable, die-cast aluminum housing with heat dissipating fins, Dark bronze polyester powder-coat finish
Lens Material Optimized Type III optics for uniform light distribution
Lifespan Estimated 127,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Mounting Details Fixture comes without mounting (sold separately), For optimum fixture performance, no tilt recommended, Can be tilted from 0˚(Down light) through 90˚(Vertical), Do NOT use as an uplight
Power Consumption 119W
Replaces (Comparable to) 320W PSMH, 400W MH
Shipping Weight 20.00 (lbs.)
Typical Mounting Height 15 to 25 feet
warranty 5 Year
