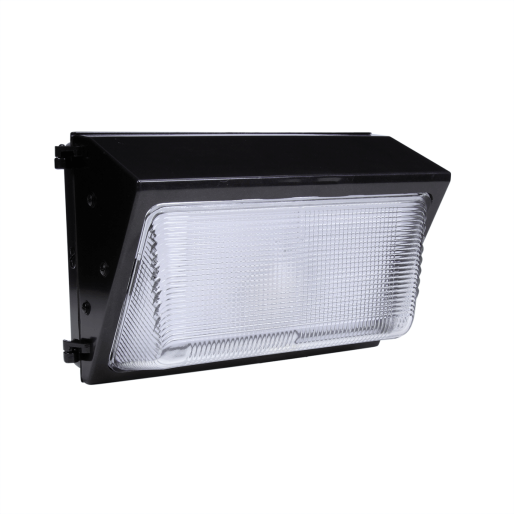

LED Traditional Non Cutoff Wall Pack | E-WFT03 Series | 4000K | Dark Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-WFT03A-N40Z

Replaces 100W PSMH
3200 Lumens

Product Overview

Replaces 100-watt pulse start metal halide (PSMH). 33-watt LED Outdoor Wall Pack with 3200 delivered lumens. 4000K, dark bronze, UL Listed, 5-year limited warranty. Next generation product of the E-WP8 Series.

Features

Housing:

Low copper, die-cast aluminum housing with hinged door frame
Dark bronze polyester powder-coat finish

Lens Assembly:

Heat and shock-resistant borosilicate glass prismatic lens

Mounting:

1/2" NPT tapped knockouts for conduit entrances (one on top, one on each side, one on back)

UL Listed:

Wet locations

Recommended Use

Security
Pathways
Perimeter lighting

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Instruction Manual: E-WFT03A Download File
Spec Sheet: E-WFT03A Download File
IES: E-WFT03A-N40Z Download File

Specifications

Applications Pathways & Walkways, Perimeter Lighting, Security
Certifications UL Listed, Wet Locations
Color Temperature (CCT) 4000K
CRI (Color Accuracy) 70 CRI
Dimensions 9-1/4" H x 14-1/8" W x 7-1/2" D
Lifespan Estimated 76,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Operating Temperature Minimum -40°C (-40°F)
Power Consumption 33W
Replaces (Comparable to) 100W PSMH
Shipping Weight 11.10 (lbs.)
Typical Mounting Height 8 to 18 feet
