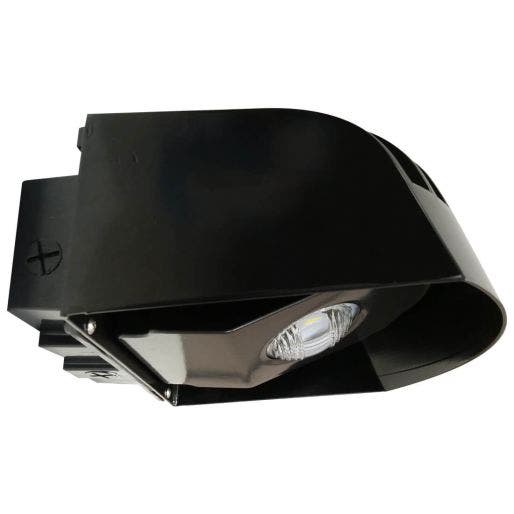

LED Premium Fixed Cutoff Wall Pack | E-WFC03 Series | 5000K | Dark Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-WFC03A-F50Z

Replaces 100W PSMH
3600 Lumens

Product Overview

Replaces 100-watt pulse start metal halide (PSMH). 33-watt Premium LED Wall Pack (small) with 3600 delivered lumens. 5000K, dark bronze, DLC Premium and UL Listed, 5-year limited warranty.

Features

Housing:

Low-copper, die-cast aluminum housing and lens frame
Dark bronze polyester powder-coat finish
Heat dissipating fins

Lens Assembly:

Tempered glass lens is thermal, shock and impact resistant
Fixed cutoff glare shield to reduce light pollution
Patented lens design delivers true IES Type III distribution

Mounting:

1/2" threaded conduit entries on two sides and bottom or mount over recessed junction box
Die-cast detachable back box for easy mounting

UL Listed:

Wet locations – downlight only

Recommended Use

Pathways
Security
Perimeter lighting
When control spill of light is important

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Instruction Manual: E-WFC03A-F50Z Download File
Spec Sheet: E-WFC03A-F50Z Download File
IES: E-WFC03A-F50Z Download File

Specifications

Applications Pathways & Walkways, Perimeter Lighting, Security, When Control of spill light is important
Color Temperature (CCT) 5000K
Color Accuracy ≥ 70 CRI
Dimensions 4-1/2" H x 8-3/4" W x 9-1/2" D
Lifespan Estimated 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Power Consumption 33W
Replaces 100W PSMH
Shipping Weight 12.15 (lbs.)
Typical Mounting Height 8 to 15 feet
warranty 5 Year
