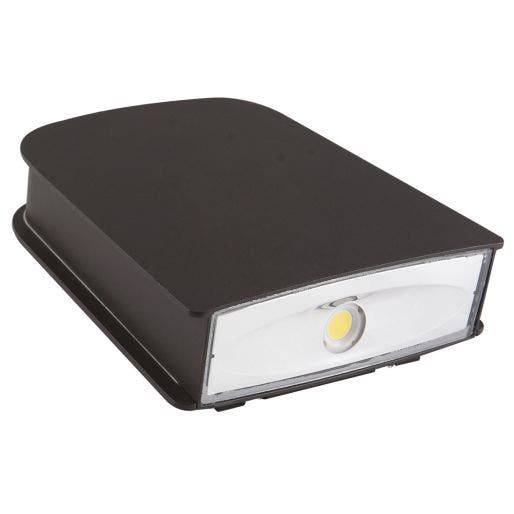

LED Slim Wall Pack / Flood | E-WF1L04 Series | 5000K | Dark Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-WF1L04CZ

Replaces 100W PSMH
3900 Lumens

Product Overview

Replaces 100-watt pulse start metal halide (PSMH). 40-watt LED Slim Wall Pack / Flood with 3900 delivered lumens. 5000K, dark bronze, DLC and UL Listed, 5-year limited warranty.

Features

Housing:

Sturdy, die-cast aluminum housing
Dark bronze polyester powder-coat finish

Lens Assembly:

Tempered glass lens is thermal, shock and impact resistant

Mounting:

Included mounting plate mounts over 4" square or octagonal junction box

UL Listed:

Wet locations

Recommended Use

Security
Perimeter lighting
When control of spill light is important
Flood and uplighting with adjustable mounting accessories

Guides & Info

IES: E-WF1L04CZ Download File
Instruction Manual: E-WF1L Download File
Spec Sheet: E-WF1L04 Download File

Specifications

Applications Perimeter Lighting, Security, When Control of spill light is important
Certifications UL Listed, Wet Locations
Color Temperature (CCT) 5000K
Color Accuracy 70 CRI
Dimensions 8" H x 7-1/2" W x 2-4/5" L
Lifespan Estimated 133,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Operating Temperature Minimum -40°(-40°F)
Power Consumption 40W
Replaces 100W PSMH
Shipping Weight 5.75 (lbs.)
Typical Mounting Height 8 to 20 feet
warranty 5 Year
