LED Square Canopy | E-CSA04 Series | Wide Distribution | 5000K | Dark Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-CSA04A-W50Z

Replaces 100W PSMH
4900 Lumens

Product Overview

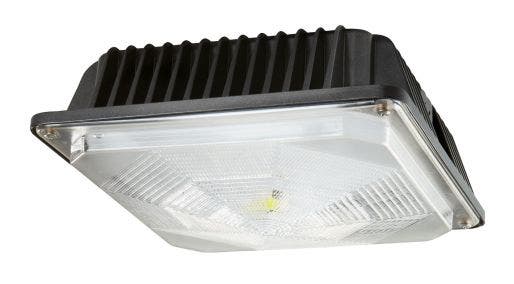

Replaces 100-watt pulse start metal halide (PSMH). 44-watt LED Canopy Light with 4900 delivered lumens. 5000K, dark bronze, DLC and UL Listed, 5-year limited warranty. Next generation product of the E-CC5 Series.

Features

Housing:

Low-copper, die-cast aluminum housing and lens frame
Dark bronze polyester powder-coat finish

Lens Assembly:

UV-stabilized acrylic prismatic refractor with self-retaining screws

Mounting:

3/4" conduit entry on top for pendant mounting
1/2" conduit entries on two sides

UL Listed:

Wet locations - covered ceiling mount only

Recommended Use

Security
Entryways
Perimeter lighting
Exterior canopies

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

IES: E-CSA04A-W50Z Download File
Spec Sheet: E-CSA04A Download File
Instruction Manual: E-CSA04A Download File

Specifications

Applications Exterior Canopies, Perimeter Lighting, Security
Certifications UL Listed, DLC Standard, Wet Locations
Color Temperature (CCT) 5000K
CRI (Color Accuracy) ≥ 70 CRI
Input Voltage Universal (120V through 277V Operation)
Lifespan Estimated >100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output 4900 Lumens
Operating Temperature Maximum 104˚F (40˚C)
Operating Temperature Minimum -4˚F (-20˚C)
Power Consumption 44W
Replaces (Comparable to) 100W PSMH
Shipping Weight 6.38 (lbs.)
Typical Mounting Height 8 to 15 feet
warranty 5 Year
