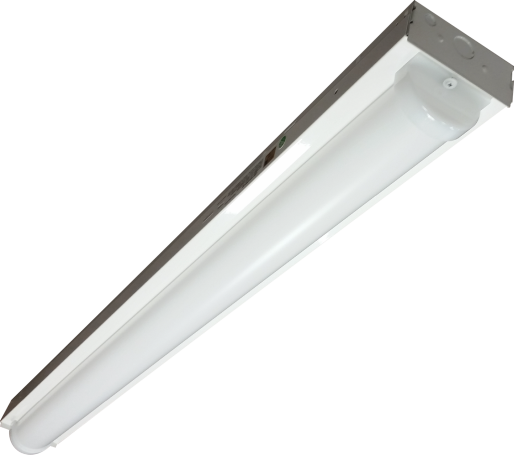

e-conolight LED 4-foot Linear Strip Light | E-LD4 Series | 5000K | White

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-LD4L1055U

Replaces 2 x F32T8
5400 Lumens

Product Overview

Replaces 2 x F32T8. 47-watt LED 4' Linear Strip Light with 5400 delivered lumens. 5000K, white, UL Listed, 5-year limited warranty.

Features

Housing:

Heavy 20 gauge steel
White powder-coat finish

Lens Assembly:

White polycarbonate diffuser lens for even light distribution (no LED pixelation)

Mounting:

Easy surface mount installation
Knockouts for easy end to end runs

UL Listed:

Damp locations

Recommended Use

Commercial
Retail
Manufacturing & warehouses

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Instruction Manual: E-LD4L1055U Download File
Spec Sheet: E-LD4L1055U Download File
IES: E-LD4L1055U Download File

Specifications

Applications Manufacturing, Storage Facilities, Storefront Lighting
Certifications cULus, Damp Locations, DLC Standard
Color Temperature (CCT) 5000K
CRI (Color Accuracy) ≥ 80 CRI
Dimensions 4-3/8" H x 3-3/4" W x 48" L
Input Voltage Universal (120V through 277V Operation)
Lifespan Estimated 54,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output 5400 Lumens
Operating Temperature Minimum 0°F (-18°C)
Power Consumption 47W
Replaces (Comparable to) 2 x F32T8
Shipping Weight 7.70 (lbs.)
warranty 5 Year
