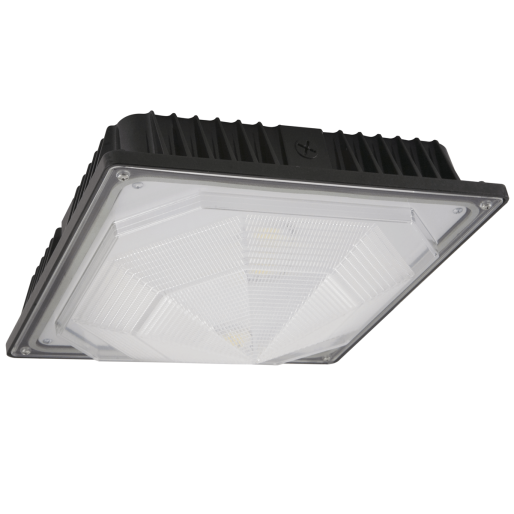

LED Square Canopy | E-CSA12 Series | Wide Distribution | 4000K | Dark Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-CSA12A-W40Z

Replaces 250W PSMH
12,000 Lumens

Product Overview

Replaces 250-watt pulse start metal halide (PSMH). 95-watt LED Canopy Light with 12,000 delivered lumens. 4000K, dark bronze, DLC and UL Listed, 5-year limited warranty.

Features

Housing:

Low-copper, die-cast aluminum housing
Dark bronze polyester powder-coat finish

Lens Assembly:

UV-stabilized acrylic prismatic refractor with self-retaining screws

Mounting:

3/4" conduit entry on top for pendant mounting
1/2" conduit entries on two sides

UL Listed:

Wet locations

Recommended Use

Security
Entryways
Perimeter lighting
Exterior canopies

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Instruction Manual: E-CSA12A Download File
Spec Sheet: E-CSA12A Download File
IES: E-CSA12A-W40Z Download File

Specifications

Applications Entryways, Exterior Canopies, Perimeter Lighting, Security
Certifications UL Listed, DLC Standard, Wet Locations
Color Temperature (CCT) 4000K
CRI (Color Accuracy) ≥ 70 CRI
Dimensions 13-2/3" L x 13-2/3" W x 6-3/5" H
Input Voltage Universal (120V through 277V Operation)
Lifespan Estimated >100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output 12000 Lumens
Operating Temperature Maximum 104˚F (40˚C)
Operating Temperature Minimum -4˚F (-20˚C)
Power Consumption 95
Replaces (Comparable to) 250W PSMH
Shipping Weight 6.38 (lbs.)
Typical Mounting Height 10 to 20 feet
