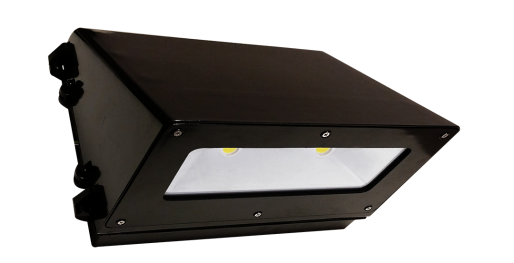

LED Traditional Full- Cutoff Wall Pack | E-WLT06 Series | 5000K | Dark Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-WLT06A-F50Z

Replaces 150W PSMH / 175W MH
6600 Lumens

Product Overview

Replaces 150-watt pulse start metal halide (PSMH) / 175-watt metal halide (MH). 66-watt LED Full Cutoff Wall Pack with 6600 delivered lumens. 5000K, dark bronze, DLC and UL Listed, 5-year limited warranty. Next generation product of the E-WP13 Series.

Features

Housing:

Low copper, die-cast aluminum housing and door frame
Dark bronze polyester powder-coat finish

Lens Assembly:

Tempered glass lens is thermal, shock and impact resistant
White polycarbonate reflector

Mounting:

1/2" threaded knockouts provided for conduit entry (one on top, one on each side) or mount over recessed junction box

UL Listed:

Wet locations

Recommended Use

Building facades
Parking areas & garages
Perimeter lighting

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

IES: E-WLT06A-F50Z Download File
Instruction Manual: E-WLT06A Download File
Spec Sheet: E-WLT06A Download File

Specifications

Applications Building Facades, Parking Garage Structures, Parking Areas, Perimeter Lighting
Color Temperature (CCT) 5000K
CRI (Color Accuracy) ≥ 70 CRI
Dimensions 9" H x 9-1/4" W x 14-1/4" D
Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Operating Temperature Maximum -40°F to 104°F (-40°C to 40°C)
Operating Temperature Minimum -40°F to 104°F (-40°C to 40°C)
Power Consumption 66W
Replaces (Comparable to) 150W PSMH, 175W MH
Shipping Weight 12.15 (lbs.)
Typical Mounting Height 10 to 15 feet
warranty 5 Year
