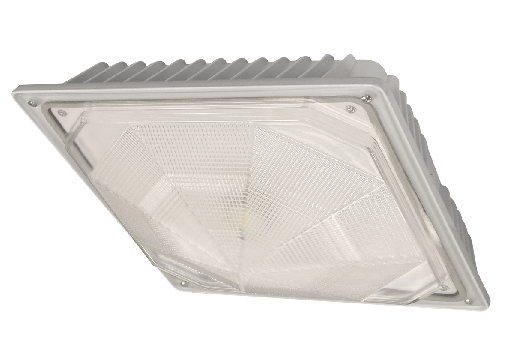

LED Square Canopy | E-CSA07 Series | Wide Distribution | 4000K | White

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-CSA07A-W40W

Replaces 150W PSMH / 175W MH
7900 Lumens

Product Overview

Replaces 150-watt pulse start metal halide (PSMH) / 175-watt metal halide (MH). 74-watt LED Square Canopy Light with 7900 delivered lumens. 4000K, white, UL Listed, 5-year limited warranty.

Features

Housing:

Low-copper, die-cast aluminum housing
White polyester powder-coat finish

Lens Assembly:

UV-stabilized acrylic prismatic refractor with self-retaining screws

Mounting:

3/4" conduit entry on top for pendant mounting
1/2" conduit entries on two sides

UL Listed:

Wet locations - covered ceiling mount only
Not intended for use with direct exposure to high-pressure water

Recommended Use

Security
Entryways
Perimeter Lighting
Exterior canopies

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Instruction Manual: E-CSA07A Download File
Spec Sheet: E-CSA07A Download File
IES: E-CSA07A-W40W Download File

Specifications

Applications Exterior Canopies, Perimeter Lighting, Security
Certifications UL Listed, DLC Standard, Wet Locations
Color Temperature (CCT) 4000K
CRI (Color Accuracy) ≥ 70 CRI
Input Voltage Universal (120V through 277V Operation)
Lifespan Estimated >100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output 7900 Lumens
Operating Temperature Maximum 104˚F (40˚C)
Operating Temperature Minimum -4˚F (-20˚C)
Power Consumption 74W
Replaces (Comparable to) 150W PSMH, 175W MH
Shipping Weight 9.90 (lbs.)
Typical Mounting Height 10 to 20 feet
