LED Shoebox-Style Flood Light | E-SBA7 Series | Wide Distribution | 4000K | Dark Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-SBA7L110NZ

Replaces 320W PSMH / 400W MH
16,900 Lumens

Product Overview

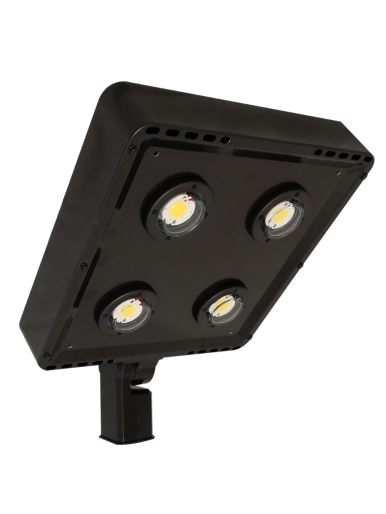

Replaces 320-watt pulse start metal halide (PSMH) / 400-watt metal halide (MH). 119-watt LED Shoebox-Style Floodlight with a wide distribution pattern, a beam spread of 110° and 16,900 delivered lumens. 4000K, dark bronze, UL Listed, 5-year limited warranty. Fixture shown with adjustable 2" slip fitter (sold separately).

Features

Housing:

Durable, die-cast aluminum housing with heat dissipating fins
Dark bronze polyester powder-coat finish

Lens Assembly:

NEMA 7 optics for uniform light distribution

Mounting:

Fixture comes without mounting (sold separately)
For optimum fixture performance, no tilt recommended
Can be tilted from 0˚ (Down light) through 90˚(Vertical)
Do NOT use as an uplight

UL Listed:

Wet locations

Recommended Use

General area lighting
Parking lots & walkways
Perimeter lighting

Guides & Info

IES: E-SBA7L110NZ Download File
Instruction Manual: E-SBA7 Series Download File
Spec Sheet: E-SBA7 Download File
Light Pole & Bullhorn EPA Data Download File

Specifications

Applications General Area Lighting, Parking Areas, Perimeter Lighting
Certifications Classified UL Listed, Wet Locations
Color Temperature (CCT) 4000K
CRI (Color Accuracy) ≥ 70 CRI
Dimensions 4-1/5" H x 16-1/5" W x 16-1/5" L
Housing Durable, die-cast aluminum housing with heat dissipating fins, Dark bronze polyester powder-coat finish
Lens Material Optimized Type III optics for uniform light distribution
Lifespan Estimated 127,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Mounting Details Fixture comes without mounting (sold separately), For optimum fixture performance, no tilt recommended, Can be tilted from 0˚(Down light) through 90˚(Vertical), Do NOT use as an uplight
Power Consumption 119W
Replaces (Comparable to) 320W PSMH, 400W MH
Shipping Weight 20.00 (lbs.)
Typical Mounting Height 15 to 25 feet
warranty 5 Year
