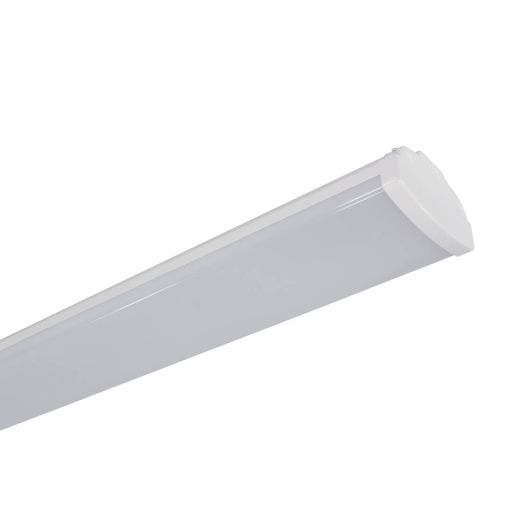

C-Lite LED Wrap Light | Wattage and CCT Selectable | C-WR-B-SCCT Series | Up to 5300 Lumens | 120-277V | White
$104.99
SKU: C-WR-B-WLIN4-53L-SCCT-WH
Replaces 2-Lamp 32WT8
Up to 5300 Lumens
Up to 5300 Lumens
Product Overview
Replaces 2-Lamp 32W T8 fixtures. C-Lite LED Wrap Light with field selectable wattage: 20W/31W/42W and CCT: 3000K/4000K/5000K. Delivers up to 5300 lumens. cULus Listed, 5-year limited warranty.
Additional Benefits:
- 4kV surge protection
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-WR-B-WLIN4-SCCT Series Download File
- Instruction Manual: C-WR-B-WLIN4-SCCT Series Download File
- IES File: C-WR-B-WLIN4-53 (3000K) Download File
- IES File: C-WR-B-WLIN4-53L (4000K) Download File
- IES File: C-WR-B-WLIN4-53L (5000K) Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Storage Facilities, Task & Workshop Lighting, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Damp Locations, DLC Standard, RoHS, Dimmable
- Color Temperature (CCT) Selectable
- Color Accuracy ≥ 80 CRI
- Dimensions 47-1/4" L x 6" W x 3-5/8 H
- Housing High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3mil thickness for superior corrosion resistance and maximum environmental durability.
- Input Voltage Universal (120V - 277V)
- Lens Material Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output 5300 Lumens
- Mounting Details Keyhole slots for surface mounting, various knockouts provided for wiring entry
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -40°F (40°C)
- Power Consumption 20W/31W/42W
- Replaces 2 x F32T8
- Shipping Weight 5.84 (lbs.)
- Typical Mounting Height 10-15 Feet
- warranty 5 Year
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Applications
Power Consumption
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
FCC Compliance
Additional Documents
C-WR-B-WLIN4-53L-SCCT-WH
Replaces 2-Lamp 32WT8
Up to 5300 Lumens
Up to 5300 Lumens
Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Storage Facilities, Task & Workshop Lighting, Warehouses
20W/31W/42W
5 Year
Yes
cULus, Damp Locations, DLC Standard, RoHS, Dimmable
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3mil thickness for superior corrosion resistance and maximum environmental durability.
Keyhole slots for surface mounting, various knockouts provided for wiring entry
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
C-WR-A-WW4-S68L-SCCT-WH
Replaces 3-Lamp 32WT8
Up to 6800 Lumens
Up to 6800 Lumens
Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Retail, Storage Facilities, Task & Workshop Lighting, Warehouses
26W/40W/55W
5 Year
Yes
cULus, DLC Standard, RoHS, Dry Locations
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3mil. thickness for superior corrosion resistance and maximum environmental durability
Keyhole slots for surface mounting, four 1/2" knockouts on sides and one 1" knockout on top for wiring entry
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
E-LWN04A-4U840
Replaces 2-lamp F32T8
5280 Lumens
5280 Lumens
Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Retail, Storage Facilities, Task & Workshop Lighting, Warehouses
48W
5 year
Yes
cETLus, Damp Locations, DLC Standard, RoHS
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Keyhole slots provided for surface mounting to single-gang or 3" or 4" octagonal junction box
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
E-LWN04A-4U850
Replaces 2-lamp F32T8
5280 Lumens
5280 Lumens
Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Retail, Storage Facilities, Task & Workshop Lighting, Warehouses
48W
5 year
Yes
cETLus, Damp Locations, DLC Standard, RoHS
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Keyhole slots provided for surface mounting to single-gang or 3" or 4" octagonal junction box
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
E-LWN04A
Replaces 2-lamp F32T8
5280 Lumens
5280 Lumens
Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Retail, Storage Facilities, Task & Workshop Lighting, Warehouses
48W
5 year
Yes
cETLus, Damp Locations, DLC Standard, RoHS
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Keyhole slots provided for surface mounting to single-gang or 3" or 4" octagonal junction box
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
