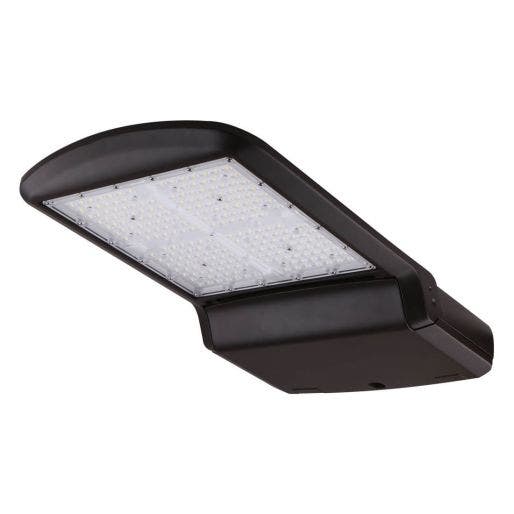

C-Lite LED Area Light | Type III | C-AR-A-AL Series | 29,000 Lumens | 5000K | Bronze

This product has been discontinued

SKU: C-AR-A-AL3-29L-50K-UL-BZ
Replaces 400W PMSH
29,000 Lumens

Product Overview

Replaces 400W Pulse Start Metal Halide (PSMH). 200-watt LED Area Light with 29,000 lumens, Type III optics, 5000K, cULus Listed, 5-year limited warranty.

Additional benefits:

  • ncludes 7-pin receptacle which complies with ANSI C136.41 standards (7-pin receptacle supports classic 3-pin standard photocells, as well as "smart" photocells for more advanced control strategies)
  • Shorting cap included
  • Contractor-friendly install with tool-less entry into the wiring compartment for easy installation
  • 3 mounting options and 3-pin photocell available (sold separately)
  • High-performance design

Note

Please double check your drilling configuration on your light pole. If ordering this fixture with e-conolight light poles, drilling configuration should be 0 and the pole will need to be field drilled.

warning!

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Specifications

  • Light Output 29,000 Lumens
  • Power Consumption 200W
  • Input Voltage Universal (120V - 277V)
  • Dimensions 27-1/4" L x 14" W x 3" H
  • Shipping Weight 14.90 (lbs.)
  • Housing Bronze, powder coated die-cast aluminum housing
  • Finish Color Bronze
  • Mounting Details Sold separately; 2-inch adjustable slip fitter, direct mount or trunnion mount
  • Typical Mounting Height 15 to 25 feet
  • Certifications cULus, Wet Locations, Dimmable, DLC Premium, IP65, RoHS
  • warranty 5 Year
  • Color Accuracy ≥ 70 CRI
  • Lens Material Engineered polycarbonate optical lens assembly provides type III, IV or V distributions
  • Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
  • Applications General Area Lighting, Parking Areas, Shopping Centers
