Cree Lighting® UR2-24™ 2-Light Bar LED Retrofit Kit | UR Series | 3200 Lumens | 4000K | White

Write a Review
Questions & Answers
Lighting Layout Tool

Your Price $17.97 $21.97

SKU: UR2-24-32L-840-10V5-UNV-BP

Replaces 2 x F17T8 or 1 x F32T8/U6
2600 Lumens (System delivered)

No returns - Final Sale item

Product Overview

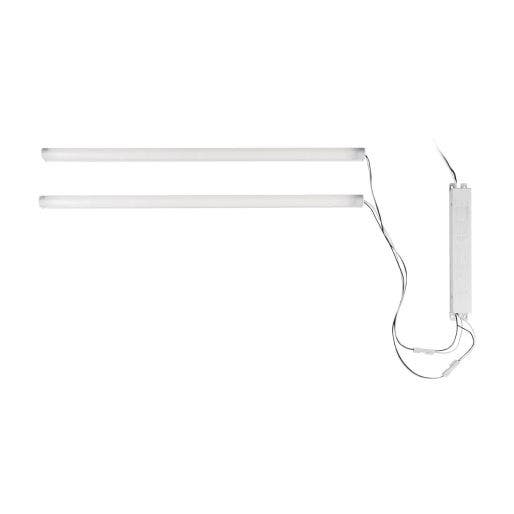

Replaces 2 x F17T8 or 1 x F32T8/U6. 21W Cree Lighting 2', 2-Light Bar Upgrade/Retrofit Kit to upgrade existing 1x2 or 2x2 linear fluorescent luminaires, 2600 lumens (System delivered), 3500K, cULus, 1-year limited warranty.

Additional Benefits:

Enhanced spectrum 80 CRI light
Easy to install and fits into almost any existing linear fluorescent fixture making it a perfect upgrade option where energy savings and long life are critical

Note:

Not all product configurations listed on the product specification sheet may be available for purchase on e-conolight.com. See a SKU that's not on our website that you'd like to purchase? Please call 888-243-9445 to place your order.

Guides & Info

IES File: UR2-24-32L-8xx-10V5-UNV Download File
Instruction Manual: UR Series Download File
Spec Sheet: UR Series Upgrade Kit Download File

Specifications

Applications Auto Dealerships, Commercial, Educational Setting, Offices, Retail, Shopping Centers
FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
Certifications cULus, Dimmable
Color Accuracy ≥ 80 CRI
Dimensions 22" MOL Light Bars
Housing Lightweight aluminum heat sink housing provides strength and durability.
Input Voltage Universal (120V - 277V)
Lens Material Specialized lens design for optimal light distribution and smooth visual effect. Polycarbonate lens and end caps
Light Output 3200 (System Delivered) Lumens
Mounting Details Includes durable plastic mounting clips with integrated magnets allow for simple snap on design to existing linear fluorescent luminaires
Operating Temperature Maximum +45°C (+113°F)
Operating Temperature Minimum -20°C (-4°F)
Power Consumption 25W
Replaces 2 x F17T8, 1 x F32T8
Shipping Weight 1.65 (lbs.)
Typical Mounting Height 8-15 feet
warranty 1 Year
