LED Exit & Emergency Light Combo | E-XCL Series | Single or Double Face | Red Letters | Battery Backup | Remote Capable
This product has been discontinued
SKU: E-XCL2RRCW
Remote Capable
Product Overview

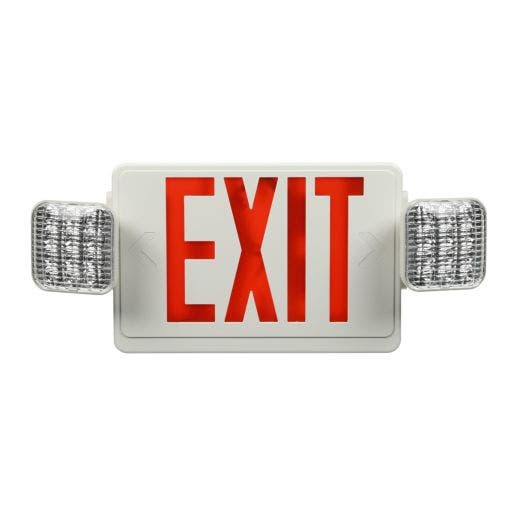

LED Exit Sign with two adjustable 1-watt LED lighting heads and 6” red letters (Single/double face). Remote capability - remote unit will run up to three single LED remote heads. Battery backup, UL Listed, mounting hardware included, 5-year limited warranty.
Features
Housing:
- Injection-molded, 5VA flame retardant thermoplastic housing
- Easy to remove and replace chevrons
Mounting:
- Easy-snap mounting canopy included for top mounting
- Universal knockout pattern on back plate for wall mount
- Mounting hardware included
Includes:
- Two adjustable 1W LED lighting heads
- Sealed, 9.6V maintenance-free nickel cadmium battery backup (90 min.)
- Charge/power on indicator LED (Battery recharges within 24 hours via internal solid-state, two-rate charger)
- Push-to-test switch
Certifications:
- UL Listed for damp locations
- Meets UL924, NFPA 101 Life Safety Code, NEC & OSHA codes
Recommended Use
- Exit identification & emergency lighting
- Indoor commercial, retail & industrial applications
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: E-XCL2RRCW Download File
- IES: E-XCL2RRCW Download File
- Instruction Manual: E-XCL Download File
Specifications
- Light Output (Per Head): 45 Lumens
- Power Consumption 3.4W / 3.6W
- Input Voltage 120V or 277V
- Dimensions 9" H x 20" W x 4-1/2" D
- Shipping Weight 4.20 (lbs.)
- Finish Color White
- Typical Mounting Height See Local Code
- Certifications cULus, Damp Locations
- warranty 5 Year
