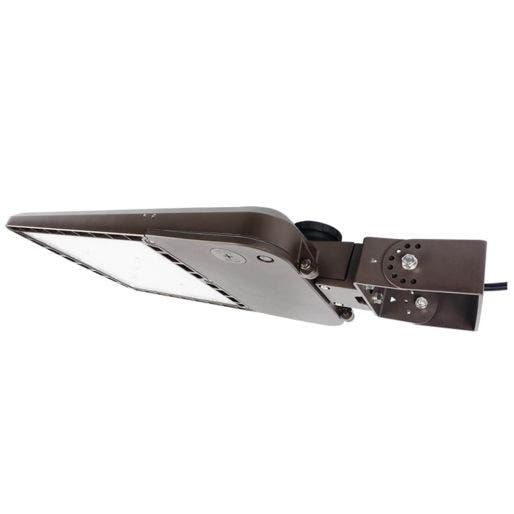

C-Lite LED Area Light w/ Trunnion | CCT & Wattage Selectable | C-AR-A-SAL Series | Type 3, 4 or 5 | 45,300 - 46,600 Lumens | Up to 300W | Bronze
Your Price $267.99 $299.99
SKU: C-AR-A-SAL-S45L-TR
Replaces 1000W MH
Up to 46,600 Lumens
Up to 46,600 Lumens
Product Overview
Replaces 1000W MH. C-Lite LED Area Light w/ field selectable CCT & wattage, with trunnion mount and 7-pin photocell receptacle, type 3, 4 or 5 distribution, up to 46,600 delivered lumens, and bronze housing. Field selectable wattage options: 75W, 107W or 150W. Field selectable CCT options: 3000K, 4000K or 5000K, cULus Listed, 5-year warranty.
Additional Features:
- Includes 7-pin receptacle which complies with ANSI C136.41 standards (7-pin receptacle supports classic 3-pin standard photocells, as well as "smart" photocells for more advanced control strategies)
- Shorting cap included
- Photometric data available for all products
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: C-AR-A-SAL Series Download File
- Spec sheet: C-AR-A-SAL Series with mount Download File
- IES Files: C-AR-A-SAL5-S45L-SCCT-UL-BZ Download File
- IES Files: C-AR-A-SAL4-S45L-SCCT-UL-BZ Download File
- IES Files: C-AR-A-SAL3-S45L-SCCT-UL-BZ Download File
- Difference between area light distribution patterns (Type III, Type IV, Type V) explained Download File
Specifications
- Applications General Area Lighting, Parking Areas, Perimeter Lighting
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 1
- Certifications cULus, Wet Locations, RoHS
- Color Accuracy >70 CRI
- Dimensions 16" L x 10" W x 4-3/8" H
- Housing Bronze, durable aluminum extruded heat sink and die-cast housing.
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated UV stabilized polycarbonate diffuser lens with Type 3, Type 4 or Type 5 optical distribution.
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 46,600 Lumens
- Mounting Details Mounting sold separately. 8-inch direct arm, 2-inch adjustable slip fitter or trunnion mount options.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 75W/107W/150W
- Replaces 1000W MH
- Shipping Weight 7.50 (lbs.)
- Typical Mounting Height > 25 feet
- warranty 5-year
