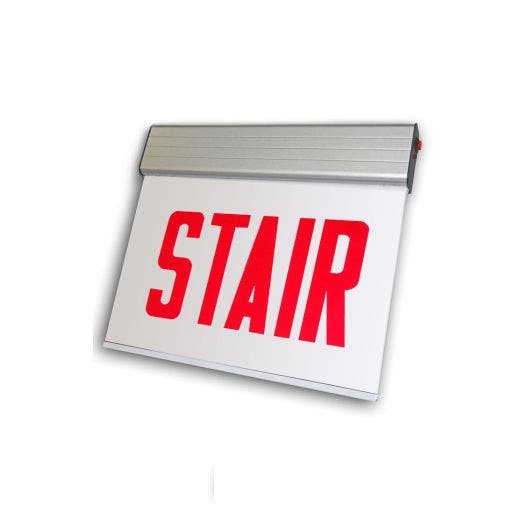

C-Lite LED Surface Edgelit Stair Sign | C-EE-A-CHI Series | Single or Double Face | Battery Backup or AC only
OOS
Your Price $114.99 - $149.99 $117.99 - $224.99 SKU: C-EE-A-CHI-STR-SFC-EL
6-inch Red Letters
Product Overview
LED Surface Edgelit Exit Sign with 6” red letters, single or double face, battery backup or AC only. Chicago Approved and UL Listed, mounting hardware included, 5-year limited warranty.
Recommended Use
- For general purpose exit identification in indoor commercial, retail, or industrial applications in the City of Chicago.
Guides & Info
- You must configure your product to download IES file.
- Spec sheet: C-EE-A-CHI-EX-SFC-EL Series Download File
- Instruction Manual: C-EE-A-CHI-EX-SFC Series Download File
Specifications
- Applications General Purpose Emergency Lighting
- Case Quantity 4
- Certifications UL Listed, Damp Locations
- Dimensions 13" W x 13-3/8" H x 2-3/8 D
- Housing Premium grade, extruded aluminum
- Input Voltage 120V or 277V
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Mounting Details Die-cast aluminum mounting canopy provided for universal top, end or back mount
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum 32°F (0°C)
- Power Consumption 4.3W / 4.7W
- Shipping Weight 4.60 (lbs.)
- Typical Mounting Height See Local Code
- warranty 5 Year
