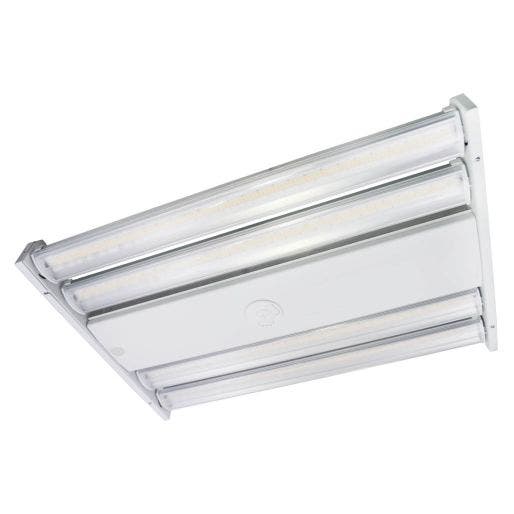

C-Lite Linear LED High Bay Light | C-HB-A-LB2 Series | CCT & Wattage Selectable | Up to 42,700 Lumens | 277-480V | White | w/6-foot Hardwired Cord Option
Your Price $289.99 - $329.99 $309.99 - $344.99
SKU: C-HB-A-LB2-S42L-SCCT-UH
Replaces 8-Lamp - T5HO 54W
Up to 42,700 Lumens
Up to 42,700 Lumens
Product Overview
Replace 8-lamp T5HO linear fluorescent. C-Lite Linear LED High Bay Light with CCT & Wattage Selectable options, optional 6-foot cord, up to 42,700 delivered lumens, white housing. CCT Selectable options: 4000K, 4500K, 5000K. Wattage selectable options: 205W, 240W and 290W. 277-480V operation, cULus Listed, 5-year limited warranty.
Additional Benefits:
- Enclosed LED light bar design prevents dust and bug intrusion
- Outside light bars pivot up to 180° to provide up-lighting or wider light distribution
- Tool-less entry to wiring compartment simplifies installation
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: C-HB-A-LB2-SCCT Series without Emergency Backup Download File
- IES Files: C-HB-A-LB2-S42L Series Download File
- Spec sheet: C-HB-A-LB2 Series Download File
Specifications
- Applications Gymnasium, Industrial, Retail, Warehouses
- Emergency Backup No
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Damp Locations, DLC Premium, RoHS, Dimmable
- Color Temperature (CCT) Selectable
- Color Accuracy ≥ 80 CRI
- Dimensions 26" L x 20-7/8" W x 3-3/8" H
- Housing Housing frame is stamped aluminum with a high reflectance, white powder-coat finish. Light bar housings and wiring compartment made from extruded aluminum.
- Input Voltage 277 through 480V
- Lens Material Polycarbonate
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 42,700 Lumens
- Mounting Details V-Hooks (2) included, chains sold separately. 6-foot 5-wire 600W cord included. Pendant/conduit mount supplied by others.
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 290 W
- Replaces 8 x F54T5HO
- Shipping Weight 12.50 (lbs.)
- Typical Mounting Height > 25 feet
- warranty 5 Year
