C-Lite Linear LED High Bay Light w/ Factory Installed Options | C-HB-A-LB2 Series | CCT & Wattage Selectable | Up to 42,700 Lumens | 120-277V | White

Write a Review
Questions & Answers
Lighting Layout Tool

$249.99 - $464.99

Knock this price down to $224.99 - $418.49. Join e-cono+ for free today Sign up >.

SKU: C-HB-A-LB2-S42L-SCCT-UL

Replaces 8-Lamp - T5HO 54W
Up to 42,700 Lumens
Optional Emergency Battery Backup

Some options may be out of stock or have a lead-time. Configure product below to confirm specific availability.

Save to Favorites

Product Overview

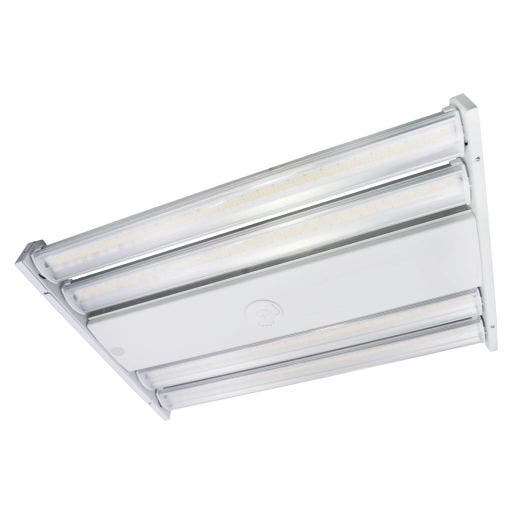

Replace 8-lamp T5HO linear fluorescent. C-Lite Linear LED High Bay Light with CCT & Wattage Selectable options, optional emergency battery backup and 6-foot cord, up to 42,700 delivered lumens, white housing. CCT Selectable options: 4000K, 4500K, 5000K. Wattage selectable options: 205W, 240W and 290W. 120-277V operation, cULus Listed, 5-year limited warranty.

Additional Benefits:

Enclosed LED light bar design prevents dust and bug intrusion
Outside light bars pivot up to 180° to provide up-lighting or wider light distribution
Tool-less entry to wiring compartment simplifies installation
20W Emergency battery backup provides 90 minutes of emergency lighting during power outages

Guides & Info

You must configure your product to download IES file.

Instruction Manual: C-HB-A-LB2-SCCT Series with Emergency Backup Download File
IES Files: C-HB-A-LB2-S42L Series Download File
Spec sheet: C-HB-A-LB2 Series Download File

Specifications

Applications Gymnasium, Industrial, Retail, Warehouses
Emergency Backup No
FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
Certifications cULus, Damp Locations, DLC Premium, RoHS, Dimmable
Color Temperature (CCT) Selectable
Color Accuracy ≥ 80 CRI
Dimensions 26" L x 20-7/8" W x 3-3/8" H
Housing Housing frame is stamped aluminum with a high reflectance, white powder-coat finish. Light bar housings and wiring compartment made from extruded aluminum.
Input Voltage Universal (120V - 277V)
Lens Material Polycarbonate
Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output Up to 42,700 Lumens
Mounting Details V-Hooks (2) included, chains sold separately. Pendant/conduit mount supplied by others.
Operating Temperature Maximum 122°F (50°C)
Operating Temperature Minimum -40°F (-40°C)
Power Consumption 290 W
Replaces 8 x F54T5HO
Shipping Weight 11.50 (lbs.)
Typical Mounting Height > 25 feet
warranty 5 Year
