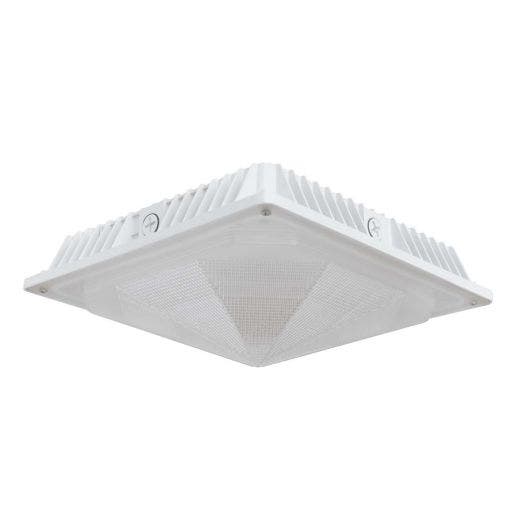

C-Lite LED Canopy Light | Wattage Selectable | C-CP-D-SQ Series | Up to 13,500 Lumens | 4000K | White
$139.99
SKU: C-CP-D-SQ-S13L-40K-WH
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Product Overview
Replaces 250W PSMH. Up to 88W C-Lite Square LED Canopy Light with Wattage Selectability, Type VS Distribution, up to 13,500 lumens, 4000K, white housing. Field selectable wattage options: 88W, 59W, 41W. cULus Listed, 5-year limited warranty.
ADDITIONAL BENEFITS:
- Wattage Selectable: 88W, 59W, 41W
- Mounts to surface, pendant, or j-box
- Photometric data available
- Polyester powder-coat finish provides corrosion protection for long-lasting color
- UV Stabilized acrylic lens designed to last
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: C-CP-D-SQ-S13L Series Download File
- Spec sheet: C-CP-D-SQ-SCCT Series Download File
- IES Files: C-CP-D-SQ-13L-40K Download File
Specifications
- Applications Entryways, Exterior Canopies, Perimeter Lighting, Security
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications cULus, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
- Color Accuracy ≥ 70 CRI
- Dimensions 13 1/4" L x 13 1/4" W x 5" H
- Housing White, low copper die-cast aluminum housing, polyester powder-coat
- Input Voltage Universal (120V - 277V)
- Lens Material UV-stabilized acrylic lens
- Lifespan Estimated > 54,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 13,500 Lumens
- Mounting Details Surface and pendant; knockouts provided for mounting directly to 4" octagonal or square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Up to 88W
- Replaces 250W MH
- Shipping Weight 9.10 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5 year
