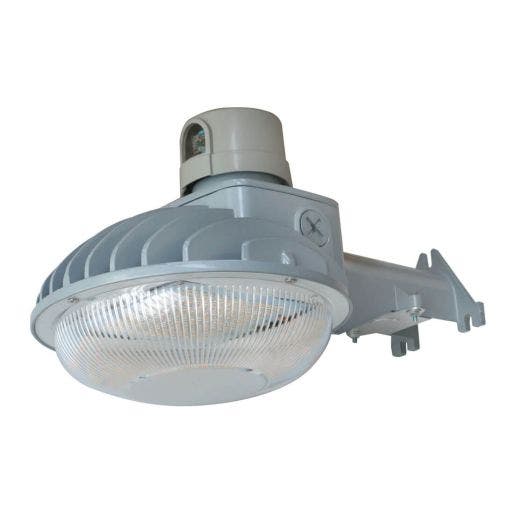

C-Lite LED Dusk to Dawn w/ Photocell | CCT & Wattage Selectable | C-AR-A-DD1 Series | Up to 12,100 Lumens | Gray
$119.99
SKU: C-AR-A-DD1-S12L-SCCT-GR
Replaces 250W PSMH
Up to 12,100 Lumens
Up to 12,100 Lumens
Product Overview
Replaces 250 PSMH. 73W C-Lite LED Dusk to Dawn with Photocell, up to 12,100 lumens, gray housing. Field selectable wattage options: 73W, 55W or 37W. Field selectable CCT options: 3000K, 4000K or 5000K, cULus Listed, 5-year warranty.
Additional Benefits:
- Up to 162 LPW (Lumens Per Watt)
- Included rotatable twist-lock photocell
- CCT & Wattage selectable technology
- 0-10v Dimming NO dimming leads available for use in the field
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-AR-A-DD1 Series Download File
- IES Files: C-AR-A-DD1-S12L-SCCT-GR Download File
- Instruction Manual: C-AR-A-DD1 Seires Download File
Specifications
- Applications General Area Lighting, Security, Yard & Dock Illumination
- Light Output Up to 12,100 Lumens
- Power Consumption Up to 73W
- Input Voltage Universal (120V - 277V)
- Dimensions 14-1/4"L x 8-3/4" W x 8-1/2" H
- Shipping Weight 6.73 (lbs.)
- Housing Gray, rugged die-cast aluminum housing with long-lasting powder-coat finish
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Mounting Details Can be mounted to pole arm diameter ranging in size from 1.57" to 1.77" (standard size). Direct mount & clamp (for mounting to existing arm) is included. Mounting arm sold separately.
- Typical Mounting Height 12 to 30 feet
- Certifications cULus, Wet Locations, DLC Premium, RoHS
- warranty 5 Year
- Color Accuracy ≥ 70 CRI
- Case Quantity 4
- Lens Material UV-stabilized acrylic prismatic refractor with white polycarbonate reflector
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Replaces 250W PSMH
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-AR-A-DD1-S12L-SCCT-GR
Replaces 250W PSMH
Up to 12,100 Lumens
Up to 12,100 Lumens
Up to 73W
Universal (120V - 277V)
5 Year
No
cULus, Wet Locations, DLC Premium, RoHS
4
Gray, rugged die-cast aluminum housing with long-lasting powder-coat finish
Can be mounted to pole arm diameter ranging in size from 1.57" to 1.77" (standard size). Direct mount & clamp (for mounting to existing arm) is included. Mounting arm sold separately.
UV-stabilized acrylic prismatic refractor with white polycarbonate reflector
Selectable, 3000K, 4000K, 5000K
E-D2DS11A-SCCTP
Replaces 320W MH
Up to 11,000 Lumens
Up to 11,000 Lumens
Up to 80W
Universal (120V - 277V)
5 year
No
UL Listed, Wet Locations, RoHS
6
Gray die-cast aluminum
Can be either wall mounted or mounted to a pipe or tenon with 1.625" diameter
Polycarbonate
Selectable, 3000K, 4000K, 5000K
