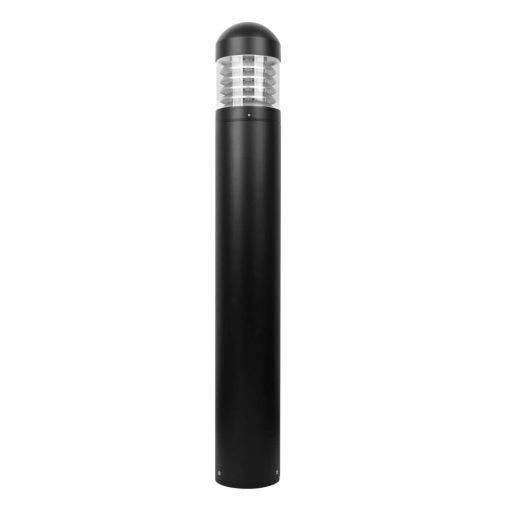

C-Lite Round LED Bollard with Dome Top & Louvered Lens | CCT & Wattage Selectable | C-BD-A-BP Series | Up to 1700 Lumens | Black
Ships in: 3-5 Days
$308.99
SKU: C-BD-A-BPRD-DOME-S2L-SCCT-UL-BK-LVR
Replaces 50W PSMH
Up to 1700 Lumens
Up to 1700 Lumens
Product Overview
Replaces 50W PSMH. C-Lite Round LED Bollard with Dome Top and Louvered Lens, with color temperature (CCT) selectable options: 3000K/4000K/5000K and wattage selectable options: 14W/18W/24W. UL Listed, black, 5-year limited warranty.
Additional Benefits:
- CCT Selectable: 3000K, 4000K or 5000K options
- Wattage Selectable: 14W/18W/24W
- 80+ CRI for a high quality lighting
- IP65 Rated
- Features a high-quality louver to help diffuse the light and appear more appealing to the eye
- 0-10v dimming with dimming leads available for use in the field
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: C-BD-A-BPRD-DOME-S2L-SCCT-UL-XX-LVR_24W_5000K Download File
- IES File: C-BD-A-BPRD-DOME-S2L-SCCT-UL-XX-LVR_24W_3000K Download File
- IES File: C-BD-A-BPRD-DOME-S2L-SCCT-UL-XX-LVR_19W_5000K Download File
- IES File: C-BD-A-BPRD-DOME-S2L-SCCT-UL-XX-LVR_19W_3000K Download File
- IES Files: C-BD-A-BPRD-DOME-S2L-SCCT-UL-XX-LVR_14W_5000K Download File
- IES File: C-BD-A-BPRD-DOME-S2L-SCCT-UL-XX-LVR_14W_3000K Download File
- IES Files: C-BD-A-BPRD Series Download File
- Informational Sheet: C-BD-A-BLD Series Download File
- Spec sheet: C-BD-A-BP-SCCT Series Download File
- Instruction Manual: C-BD-A-BPRD Series Download File
- Anchor Bolt Template for C-BD-A-BPRD Series Download File
Specifications
- Applications Entryways, General Area Lighting, Pathways & Walkways, Perimeter Lighting
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 1
- Certifications UL Listed, Wet Locations, Dimmable, DLC Premium, IP65, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 43-5/8" Tall x 6-3/8" Round
- Housing Powder coated black, with die-cast aluminum housing
- Input Voltage Universal (120V - 277V)
- Lens Material High impact polycarbonate lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 1700 Lumens
- Mounting Details Easy install using supplied anchor bolts, 4 bolt system.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 14W/18W/24W
- Replaces 50W PSMH
- Shipping Weight 13.00 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5 Year
