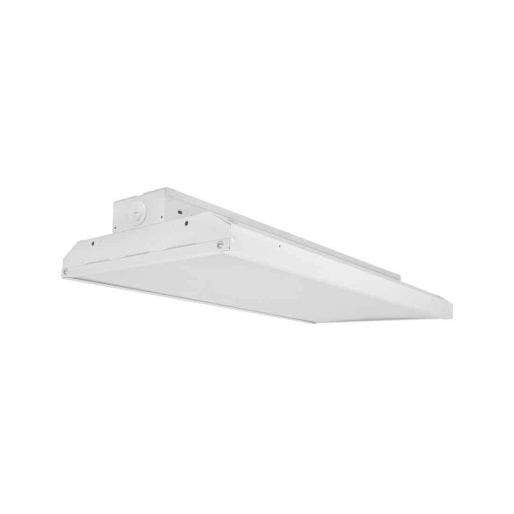

C-Lite | Up to 22,500 Lumens | C-PHB-D Series Linear LED High Bay w/ or w/out Emergency Battery Backup | Up to 150W | CCT & Wattage Selectable | 120-277v | White
$139.99 - $299.99
SKU: C-PHB-D-L2F-S22L
Wattage Selectable: 15,200 Lumens, 18,800 Lumens or 22,500 Lumens
CCT Selectable: 3500K, 4000K or 5000K
0-10v Dimming to 10% WITH dimming leads available for use in field
CCT Selectable: 3500K, 4000K or 5000K
0-10v Dimming to 10% WITH dimming leads available for use in field
Product Overview
Suit your needs with our Linear LED High Bay with or without Emergency Battery Backup that delivers up to 22,500 lumens, features an 80 CRI, and is cULus Listed for damp locations. This fixture is CCT & Wattage Selectable so you can decide what you need on site and serve a broad range of applications. Two V-Hooks are included with chains. Emergency backup options available as well as field installed PIR sensor. Plus, it's backed by our standard 5-year warranty.
Additional Benefits:
- Frosted polycarbonate lens for even light distribution
- 2kA surge protection standard
- 3.5mm 12VDC sensor socket standard
- Field installable multifunction PIR sensors available
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: C-PHB-D Series Download File
- Spec sheet: C-PHB-D Series Download File
Specifications
- Light Output Selectable: 15,200, 18,800, or 22,500 Lumens
- Power Consumption Selectable: 100W, 125W, 150W
- Operating Temperature Range -13ºF to 104ºF (-25ºC to 40ºC)
- Input Voltage Universal (120v - 277v)
- Dimensions 24-5/8” L x 12-5/8” W x 3-5/8” H
- Housing Die cast aluminum housing with white powder coat finish
- Mounting Details V-hook and chain mounting system included.
- Typical Mounting Height 10 to 25 feet
- Certifications cULus, Damp Locations, Dimmable, RoHS
- warranty 5 Year
- Color Accuracy ≥ 80 CRI
- Lens Material Frosted polycarbonate lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Applications Commercial, Gymnasium, Industrial, Manufacturing, Offices, Retail, Shopping Centers, Storage Facilities, Task & Workshop Lighting, Warehouses, Workshops
