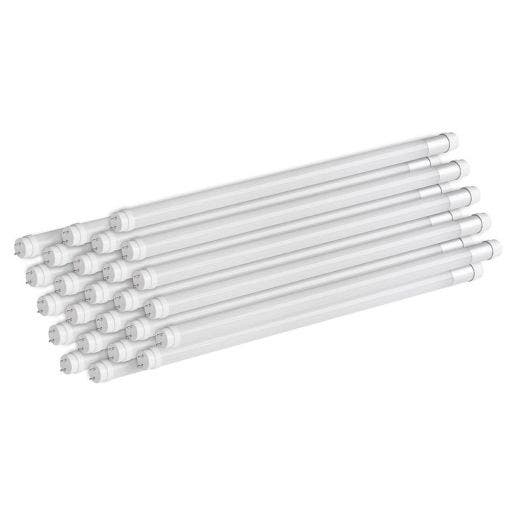

C-Lite T8 LED Tube Lights | C-T8-B Series | Double End Powered Ballast Bypass | 12W | 3500K , 4000K or 5000K | 4-Foot | 25-Pack

Write a Review
Questions & Answers
Lighting Layout Tool

$189.00

$7.56 EACH, PACK OF 25

SKU: C-T848-B

Replaces 32W fluorescent
1800 Lumens

Some options may be out of stock or have a lead-time. Configure product below to confirm specific availability.

Save to Favorites

Product Overview

Replaces 32W fluorescent. C-Lite 12W T8 LED Tube Light. 4-foot bypass lamp, 1800 lumens, 3500K, frosted glass lens, cULus Listed, 5-year limited warranty.

Additional Benefits:

Prevents low efficiency, ballast life, compatibility and safety issues that can be found in Type A T8’s
Medium Bi-Pin Base (G13)
No socket replacement necessary – use with shunted or non-shunted sockets
Use a maximum of 4 C-T8 replacement lamps per fixture
Suitable for use in enclosed fixtures

Guides & Info

You must configure your product to download IES file.

Instruction Manual: C-T8 Series Download File
Spec Sheet: C-T8 Download File

Specifications

Applications Commercial, Educational Setting, General Area Lighting, Hallways & Stairways, Offices, Retail, Shopping Centers, Storage Facilities, Warehouses
FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
Case Quantity 25
Certifications cULus, Damp Locations, DLC Standard, RoHS
Color Accuracy ≥ 80 CRI
Dimensions 47-4/5" L x 1-1/9" H
Housing Glass tube with aluminum end caps
Input Voltage Universal (120V - 277V)
Lens Material Frosted glass
Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
Light Output 1800 Lumens
Mounting Details Mounts into 4" fluorescent luminaires; Medium bi-pin base (G13), No socket replacement necessary – use with shunted or non-shunted sockets; Use a maximum of 4 C-T8 replacement lamps per fixture
Operating Temperature Maximum 122°F (50°C)
Operating Temperature Minimum -4°F (-20°C)
Power Consumption 12W
Replaces 32W Fluorescent
Shipping Weight 6.50 (lbs.)
Typical Mounting Height 8 to 10 feet
warranty 5 Year
