C-Lite LED Basket Troffer w/ or w/out Emerg. Battery Backup | C-TR-C-BT Series | 2'x2' | CCT & Wattage Selectable | Up to 3900 Lumens | 120-277V | 2-Pack
OOS
$109.99 - $209.99 $55.00 - $105.00 EACH, PACK OF 2
SKU: C-TR-C-BT22-S39L-SCCT
Replaces 3-lamp F17T8
Up to 3900 Lumens
Up to 3900 Lumens
Product Overview

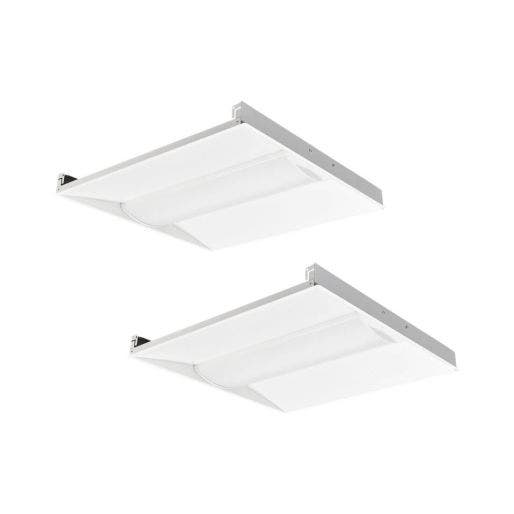

The C-Lite 2-Pack LED Basket Troffer features field selectable CCT and wattage, providing excellent versatility to meet your application needs. The 2’x2’ selectable troffer delivers up to 3900 lumens, with CCT selectable options of: 3500K, 4000K and 5000K and wattage selectable options of: 20W, 25W or 30W. With or without integrated emergency battery backup. Included 5-year limited warranty.
Guides & Info
- You must configure your product to download IES file.
- Spec sheet: C-TR-C-BT Series Download File
- Instruction Manual: C-TR-C-BT Series (without EB) Download File
- Instruction Manual: C-TR-C-BT Series (with EB) Download File
Specifications
- Applications Commercial, Educational Setting, Offices, Retail
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Damp Locations, Dimmable, DLC Standard, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 23-3/4" L x 23-3/4" W x 2-1/8" H
- Housing White powder-coated steel frame
- Input Voltage Universal (120V - 277V)
- Lens Material Frosted polycarbonate
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 3900 Lumens
- Mounting Details Recessed, installs into conventional grid celings
- Operating Temperature Range -4°F to 122°F (-20°C to 50°C)
- Power Consumption 20W/25W/30W
- Replaces 3 x F17T8
- Shipping Weight 6.28 (lbs.)
- Product Weight 6.28 lbs
- Typical Mounting Height 0 to 10 feet
- warranty 5 year
