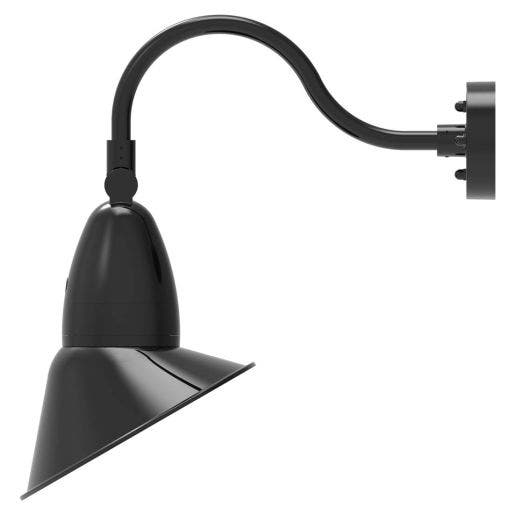

C-Lite LED Gooseneck Light w/ 11-inch Angled Shroud | Wattage Selectable | C-WM-A-WDG Series | 4200 or 4500 Lumens | 3000K or 5000K | Black
$149.99
SKU: C-WM-A-WDG-S4L-11IN-ANG
Replaces 100W PSMH
4200 or 4500 Lumens
4200 or 4500 Lumens
Product Overview
Replaces 100W PSMH. C-Lite Wall Mount LED Gooseneck Light w/11-inch angled shroud and field selectable wattages: (37W, 28W or 17W), 4200 or 4500 delivered lumens, 3000K or 5000K, cULus Listed, 5 year limited warranty.
Features & Benefits:
- Field selectable wattage
- 17-1/2" arm to gain maximum light distribution
- Shroud can be adjusted to many different angles to fit your needs
Guides & Info
- You must configure your product to download IES file.
- Spec Sheet: C-WM-A-WDG Series Download File
- IES File: C-WM-A-WDG-S4L_5000K (17W) Download File
- IES File: C-WM-A-WDG-S4L_5000K (28W) Download File
- IES File: C-WM-A-WDG-S4L_5000K (37W) Download File
- IES File: C-WM-A-WDG-S4L_3000K (17W) Download File
- IES File: C-WM-A-WDG-S4L_3000K (28W) Download File
- IES File: C-WM-A-WDG-S4L_3000K (37W) Download File
- Instruction Manual: C-WM-A-WDG Download File
Specifications
- Applications Building Facades, Commercial, Outdoor Patios & Deck, Retail, Signs & Monuments, Storefront Lighting
- Factory Installed Emergency Backup No
- Emergency Backup No
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Wet Locations, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 19-1/4" L x 11" W x 19-1/2" H
- Housing Powder coated black, duarable die-dast aluminum housing
- Input Voltage Universal (120V - 277V)
- Lens Material Tempered glass
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 4200 or 4500 Lumens
- Mounting Details Direct mount; includes mounting plate, fits over 4-inch square or octagonal junction box and secures with four acorn nuts.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Up to 37W
- Replaces 100W PSMH
- Shipping Weight 5.00 (lbs.)
- Typical Mounting Height > 25 feet
- warranty 5 Year
