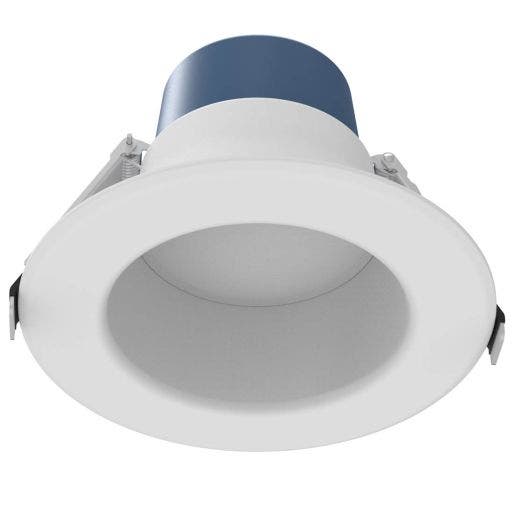

Cree Lighting® 10-inch LED Downlight | CDR10 Series | Wattage & CCT Selectable | Up to 3200 Lumens | White

Write a Review
Questions & Answers
Lighting Layout Tool

$68.99

Knock this price down to $62.09. Join e-cono+ for free today Sign up >.

SKU: CDR10-B-ALS-9ACK-10V5-WH-UNV

Replaces 2-lamp 42W compact fluorescent (CFL)
Up to 4000 Lumens

Product Overview

Replaces 2-lamp 42-watt compact fluorescent (CFL). LED 10-inch Downlight with a selectable wattage of: 26W, 32W or 42W with up to 4000 delivered lumens. Color temperature (CCT) selectable: 3000K/3500K/4000K, cETLus Listed, 5-year limited warranty.

Additional Benefits:

IC Rated
Designed for canless applications
Contains 2 switches to allow you to select your wattage and color temperature (CCT)

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

IES File: CDR10-B-ALS-9ACK-10V5-WH-UNV Download File
Instruction Manual: CDR-B Series Download File
Spec sheet: CDR_B Series Download File
IES Files: CDR10-B-ALS-9ACK-10V5-WH-UNV Download File

Specifications

Applications Offices, Residential, Retail, Warehouses
FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
Case Quantity 8
Certifications cETLus, ENERGY STAR®, Title 24, RoHS, Wet Locations
Color Temperature (CCT) Selectable
Color Accuracy ≥ 90 CRI
Dimensions 6-3/8" H x 11-1/2" Dia
Housing Aluminum trim, baffle and housing, white finish. Polycarbonate plastic driver compartment
Input Voltage Universal (120V - 277V)
Lens Material Diffused polycarbonate
Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output 2600/3200/4000 Lumens
Mounting Details Two spring-action mounting clips secure fixture snug to mounting surface
Operating Temperature Maximum 104°F (40°C)
Operating Temperature Minimum -4°F (-20°C)
Power Consumption 26/32W/42W
Replaces 23W CFL
Shipping Weight 2.58 (lbs.)
Typical Mounting Height 10 to 15 feet
warranty 5 Year
