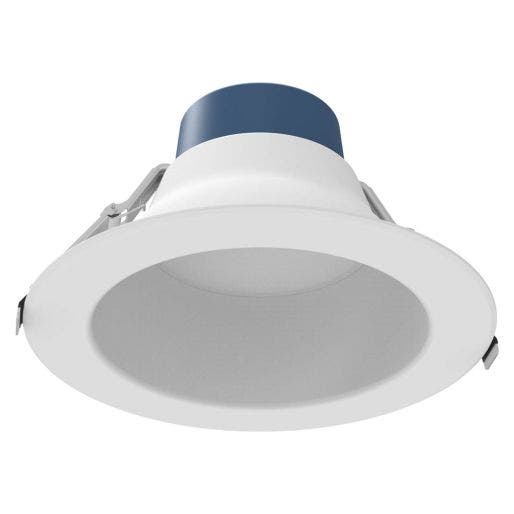

Cree Lighting® 8-inch LED Downlight | CDR8 Series | CCT & Wattage Selectable | Up to 5000 Lumens | High Output | White
$66.99
SKU: CDR8-B-ALH-9ACK-10V5-WH-UNV
Replaces 2-lamp 42W compact fluorescent (CFL)
Up to 5000 Lumens
Up to 5000 Lumens
Product Overview
Replaces 2-lamp 42-watt compact fluorescent (CFL). LED 8-inch Downlight with a selectable wattage of: 32W, 42W or 52W with up to 5000 delivered lumens. Color temperature (CCT) selectable: 3000K/3500K/4000K, cETLus Listed, 5-year limited warranty.
Additional Benefits:
- Designed for canless applications
- Contains 2 switches to allow you to select your wattage and color temperature (CCT)
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: CDR8-B-ALH-9ACK-10V5-WH-UNV Download File
- Instruction Manual: CDR-B Series Download File
- Spec sheet: CDR_B Series Download File
- IES Files: CDR8-B-ALH-9ACK-10V5-WH-UNV Download File
Specifications
- Applications Offices, Residential, Retail, Warehouses
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Case Quantity 8
- Certifications cETLus, ENERGY STAR®, Title 24, RoHS, Wet Locations
- Color Temperature (CCT) Selectable
- Color Accuracy ≥ 90 CRI
- Dimensions 5-7/8" H x 10-1/4" Dia
- Housing Aluminum trim, baffle and housing, white finish. Polycarbonate plastic driver compartment
- Input Voltage Universal (120V - 277V)
- Lens Material Diffused polycarbonate
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 5000 Lumens
- Mounting Details Two spring-action mounting clips secure fixture snug to mounting surface
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 32W/42W/52W
- Replaces 42W CFL
- Shipping Weight 2.18 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5-Year
