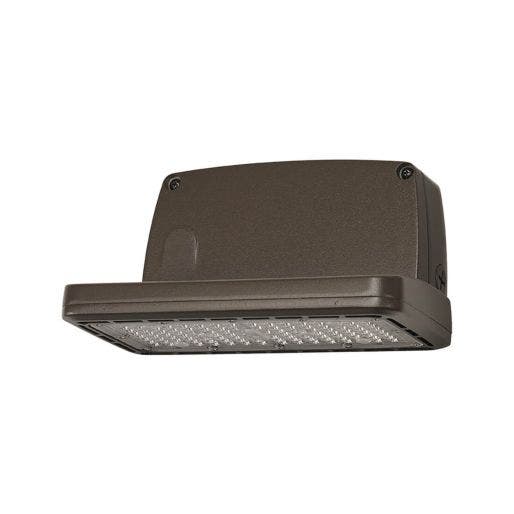

Cree Lighting® Noctura® Series LED Wall Pack | 6750 Lumens | 5000K | 347 or 480V Operation | Medium Bronze

$135.99

SKU: NTW-A-WM-T3-7L-50K-UH-BZ
Replaces 150W PSMH
6,750 Lumens

Product Overview

Replaces 150W Pulse Start Metal Halide. 46-watt C-Lite LED Wall Pack with 6,750 delivered lumens. 5000K, white, cULus 5-year limited warranty. Designed for downlight applications only.

Features

Housing:
  • Low Copper Content
  • Corrosion resistant
  • 360 Cast Aluminum Alloy Housing
  • Polyester Powercoat finished
Lens Assembly:
  • Impact resistant acrylic
Mounting:
  • Luminaire mounts to a variety of junction box styles: 4" square, 3" and 4" octagonal, single gang, vertical or horizontal mounts. Direct mount to junction box with knockouts and grommet on back
cULus Listed:
  • Wet Location
  • Certifications:
    • RoHS
    • IP65
    Dimmable:
    • 0-10V

Recommended Use

  • Perimeter
  • Security
  • Education
  • Yard/Dock

Note:

  • Not all product configurations listed on the product specification sheet may be available on e-conolight. See a SKU that's not on our website that you'd like to purchase? Please call 888-243-9445 to place your order.
warning!

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Specifications

  • Applications Perimeter Lighting, Security, Storefront Lighting, Yard & Dock Illumination
  • Certifications cULus, RoHS, Dimmable, IP65, Wet Locations
  • Color Accuracy ≥ 70 CRI
  • Dimensions 12 3/8" L X 9" W X 7 3/8" H
  • Input Voltage 347V - 480V
  • Lifespan Estimated > 150,000 hours of maintenance-free operation to L70 at 25°C (77°F)
  • Light Output 6750 Lumens
  • Mounting Details Mounting sold separately - see accessories below on available options
  • Operating Temperature Maximum 122°F (40° C)
  • Operating Temperature Minimum -40°F (-40°C)
  • Power Consumption 46W LED
  • Replaces 150W PSMH
  • Shipping Weight 6.88 (lbs.)
  • Typical Mounting Height 12-20 Feet
  • warranty 5 Year

Customers Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 5.68ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 30.74ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Product Comparison

Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Mounting Details
Color Temperature (CCT)
Additional Documents
NTW-A-WM-T3-7L-50K-UH-BZ
Replaces 150W PSMH
6,750 Lumens
46W LED
347V - 480V
5 Year
Yes
cULus, RoHS, Dimmable, IP65, Wet Locations
Mounting sold separately - see accessories below on available options
5000K
C-WP-C-RDC-S6L-SCCT-DB
Replaces 175W MH
Up to 6000 Lumens
Up to 42W
Universal (120V - 277V)
5-year
No
cULus, DLC Standard, RoHS, Wet Locations
1/2-inch threaded knockouts provided for conduit entry or mount over a recessed j-box. Knockouts are located on both sides and the top of the back box.
Selectable, 3000K, 4000K, 5000K
E-WFS06A-F50Z
Replaces 150W PSMH
6100 Lumens
46W
Universal (120V through 277V Operation)
5 Year
No
cULus, DLC Premium, Wet Locations
N/A
5000K
