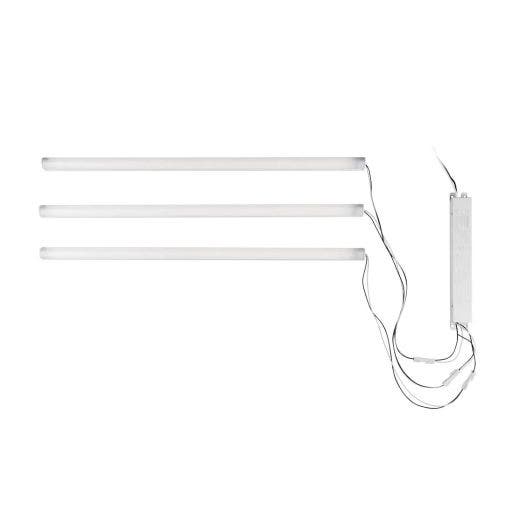

Cree Lighting® UR3-48™ 3-Light Bar LED Retrofit Kit | UR Series | 6300 Lumens | 4000K | White
Back-Order: Available by 06/03/2024
Your Price $38.97 $64.97
SKU: UR3-48-63L-840-10V5-UNV
Replaces 4 x F32T8
6300 Lumens (System delivered)
6300 Lumens (System delivered)
Product Overview
Replaces 4 x F32T8. 47W Cree Lighting 4', 3-Light Bar Upgrade/Retrofit Kit to upgrade existing 1x4 or 2x4 linear fluorescent luminaires, 6300 lumens (System delivered), 4000K, cULus, 1-year limited warranty.
Additional Benefits:
- Enhanced spectrum 80 CRI light
- Easy to install and fits into almost any existing linear fluorescent fixture making it a perfect upgrade option where energy savings and long life are critical
Note:
Not all product configurations listed on the product specification sheet may be available for purchase on e-conolight.com. See a SKU that's not on our website that you'd like to purchase? Please call 888-243-9445 to place your order.
Guides & Info
- Instruction Manual: UR Series Download File
- Spec Sheet: UR Series Upgrade Kit Download File
- IES File: UR3-48-63L-840-10V5-UNV Download File
Specifications
- Applications Auto Dealerships, Commercial, Educational Setting, Offices, Retail, Shopping Centers
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Dimmable
- Color Accuracy ≥ 80 CRI
- Dimensions 44" MOL Light Bars
- Housing Lightweight aluminum heat sink housing provides strength and durability.
- Input Voltage Universal (120V - 277V)
- Lens Material Specialized lens design for optimal light distribution and smooth visual effect.
- Light Output 6300L (System delivered) Lumens
- Mounting Details Includes durable plastic mounting clips with integrated magnets allow for simple snap on design to existing linear fluorescent luminaires
- Operating Temperature Maximum +45°C (+113°F)
- Operating Temperature Minimum -20°C (-4°F)
- Power Consumption 47W
- Replaces 4 x F32T8
- Shipping Weight 2.17 (lbs.)
- Typical Mounting Height 8-15 feet
- warranty 1 Year
