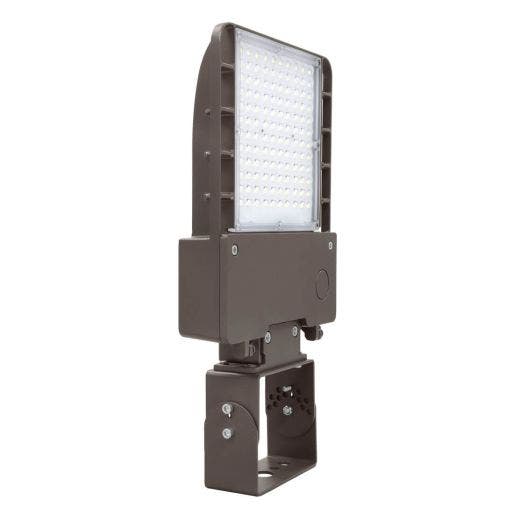

GKOLED® LED Area Light w/ Various Mounting Options | 120-277V | Type 3, 4 or 5 | GKOALG5 Series | 14,200 Lumens | 100W | 4000K or 5000K | Dark Bronze
$169.99 - $229.99
SKU: GKOALG5100W27V
Replaces 400W MH
14,200 Lumens
14,200 Lumens
Product Overview
Replaces 400W MH. 100W GKOLED® LED Area Light w/ various mounting options. Type 3, 4 or 5 distribution, 14,200 delivered lumens, 4000K or 5000K, dark bronze powder coat finish, UL Listed, 120-277V universal voltage, 5-year limited warranty.
Additional Benefits:
- Complete set of optical systems to meet various application site requirements
- Rugged single-piece, die-cast aluminum housing with integral heat sink fins
- Housing has direct contact with driver to preserve cooler temps to help prolong lifespan
- Backlight shield option
- DLC Premium 5.1
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: GKOALG5 Series Download File
- Spec Sheet: GKOALG5 Series Download File
- Difference between area light distribution patterns (Type III, Type IV, Type V) explained Download File
Specifications
- Applications Commercial, General Area Lighting, Parking Areas
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Certifications UL Listed, Wet Locations, Dimmable, DLC Premium, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 17-1/2" L x 9-1/4" W x 2-1/2" H
- Housing Dark bronze, rugged single-piece, die-cast aluminum housing with integral heat sink fins. Housing has direct contact with the driver to help maintain low temperature and long lifespan.
- Input Voltage Universal (120-277V)
- Lens Material Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing.
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 14,200 Lumens
- Mounting Details "Die-cast aluminum yoke is easily adapted to many surfaces and adjusted to a range of fixture aiming angles.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 100W
- Replaces 400W MH
- Shipping Weight 7.70 (lbs.)
- Typical Mounting Height > 25 feet
- warranty 5-year
