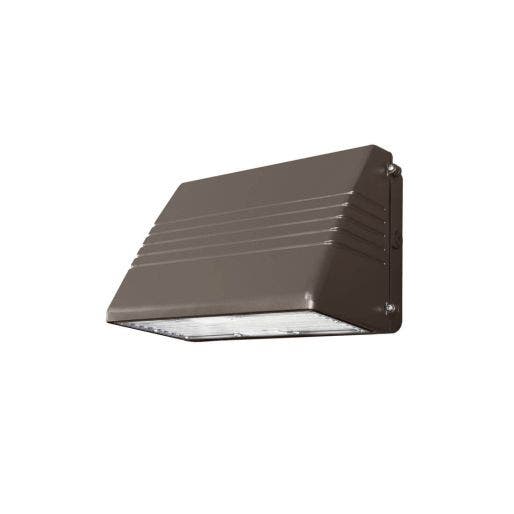

GKOLED® | Up to 10,200 Lumens | GKOWPG3 Series Cutoff LED Wall Pack w/ Integrated Photocell | Up to 70W | 3000K, 4000K or 5000K | 120v-277v | Dark Bronze
Ships in: Next Business Day
$124.99
SKU: GKOWPG370W27VDDKDP0AD
Wattage Selectable: 28W, 42W, 56W, 70W
CCT Selectable: 3000K, 4000K or 5000K
0-10V Dimmable to 10%- 0-10v - Dimming with dimming leads available for use in the field
CCT Selectable: 3000K, 4000K or 5000K
0-10V Dimmable to 10%- 0-10v - Dimming with dimming leads available for use in the field
Product Overview
Our up to 70W GKOLED® Cutoff LED Wall Pack has field selectable CCT and wattage, capable of wall mounting or junction box mounting, delivers up to 11,000 lumens, dark bronze finish, 5-year limited warranty.
Additional benefits:
- CCT Selectable options of: 3000K, 4000K or 5000K
- Housing is completely sealed against moisture and environmental contaminants
- 0-10V Dimmable- Dimming with dimming leads available for use in the field
- Integrated photocell
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: GKOWPG3 Series Download File
- Instruction Manual: GKOWPG3 Series Download File
- IES Files: GKOWPG370W27VDDKD Download File
Specifications
- Light Output Up to 11,000 Lumens
- Power Consumption Up to 70W
- Operating Temperature Range -40˚F to 113˚F (-40˚C to 45˚C)
- Input Voltage Universal (120V - 277V)
- Dimensions 14-1/5" L x 8-7/10" W x 9-1/5" H
- Product Weight 7.21 lbs
- Shipping Weight 7.21 (lbs.)
- Housing Dark Bronze, Rugged die-cast aluminum housing, Housing has direct contact with the driver to help maintain low temperature and long lifespan.
- Finish Color Dark Bronze
- Mounting Details Wall mounting or Junction box mounting
- Certifications UL Listed, Wet Locations, Dimmable
- warranty 5 year
- Color Accuracy ≥ 70 CRI
- Lens Material Impact-resistant UV-coated polycarbonate lens
- Lifespan Estimated > 72,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Applications Perimeter Lighting, Security
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
GKOWPG370W27VDDKDP0AD
Wattage Selectable: 28W, 42W, 56W, 70W
CCT Selectable: 3000K, 4000K or 5000K
0-10V Dimmable to 10%- 0-10v - Dimming with dimming leads available for use in the field
CCT Selectable: 3000K, 4000K or 5000K
0-10V Dimmable to 10%- 0-10v - Dimming with dimming leads available for use in the field
Up to 70W
Universal (120V - 277V)
5 year
Yes
UL Listed, Wet Locations, Dimmable
Dark Bronze, Rugged die-cast aluminum housing, Housing has direct contact with the driver to help maintain low temperature and long lifespan.
Wall mounting or Junction box mounting
Impact-resistant UV-coated polycarbonate lens
Selectable, 3000K, 4000K, 5000K
GKOWPG270W27V50KD
Replaces 250W MH
9900 Lumens
9900 Lumens
70W
Universal (120V through 277V Operation)
5 Year
No
UL Listed, Wet Locations, DLC Standard, RoHS
Bronze, Rugged die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing
5000K
