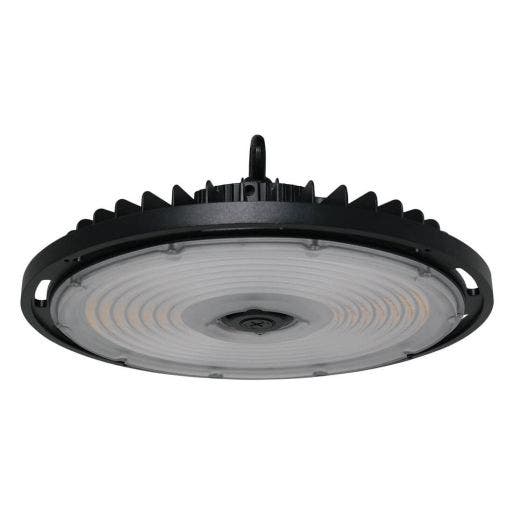

C-Lite Round UFO LED High Bay Light | C-HB-D-RD Series | CCT & Wattage Selectable | Up to 35,000 Lumens | 120-277V | Black or White
$129.99
SKU: C-HB-D-RD-S35L-SCCT-UL
Replaces up to 400W PSMH
Up to 35,000 Lumens
Up to 35,000 Lumens
Product Overview
Our C-Lite C-HB-D-RD Series UFO LED High Bay has field selectable CCT and wattage and available with a variety of accessories and mounting options, providing excellent versatility to meet your high bay application needs. Available in a durable, black powder-coat finish, this model delivers up to 35,000 lumens. CCT selectable options: 4000K or 5000K. Wattage selectable options: 150/200/240W. cULus Listed and backed by our 5-year limited warranty.
Additional Benefits:
- Lightweight, compact design
- IK09 Impact Protection Rated PC Lens
- 6kV Surge Protection
- M10 Eyebolt for suspension mounting included
Guides & Info
- You must configure your product to download IES file.
- Instruction Manual: C-HB-D-RD Series Download File
- Spec sheet: C-HB-D-RD Series Download File
Specifications
- Light Output Up to 35,000 Lumens
- Power Consumption 150/200/240W
- Operating Temperature Range -40⁰ F to 122⁰ F (-40⁰ C to 50⁰ C)
- Input Voltage Universal (120V - 277V)
- Dimensions 13" Dia. x 5-5/8" H (with eyebolt)
- Shipping Weight 5.97 (lbs.)
- Housing Black powder coated, die-cast aluminum housing
- Mounting Details M10 threaded eye-bolt standard. Pendant mount hook and yoke mount options available (sold separately)
- Typical Mounting Height > 25 feet
- Certifications cULus, Wet Locations, Dimmable, DLC Premium, IP65, RoHS
- warranty 5 year
- Color Accuracy ≥ 80 CRI
- Lens Material Clear Polycarbonate
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Applications Gymnasium, Industrial, Manufacturing, Retail, Storage Facilities
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-HB-D-RD-S35L-SCCT-UL
Replaces up to 400W PSMH
Up to 35,000 Lumens
Up to 35,000 Lumens
150/200/240W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, IP65, RoHS
Black powder coated, die-cast aluminum housing
M10 threaded eye-bolt standard. Pendant mount hook and yoke mount options available (sold separately)
Clear Polycarbonate
Selectable, 4000K, 5000K
GKOHB06215W27VDDKB
Replaces 400W PSMH
Up to 30,500 Lumens
CCT Selectable: 4000K or 5000K
Up to 30,500 Lumens
CCT Selectable: 4000K or 5000K
215W
Universal (120V - 277V)
5 Years
Yes
UL Listed, Wet Locations, Dimmable, DLC Standard
Rugged 1-piece aluminum housing with integrated heat sync fins. Black rust-resistant polyester powder-coat finish
M10 threaded entry, mounting hook included (Electrical: 12" 3-wire 17AWG SJOW Power cord, 9" 2-wire 22AWG Dimming cord)
Integrated impact and UV-resistant diffused polycarbonate lens
Selectable, 4000K, 5000K
E-HBR28A-HK40UK
Replaces 400W PSMH
28,000 Lumens
28,000 Lumens
200W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, Dimmable, IP66, RoHS
Black powder-coated, die-cast aluminum housing
1/2" threaded entry for hook suspension or pendant mounting. 1/2" hook included, pendant supplied by others.
Clear polycarbonate
4000K
E-HBR28A-HK50UK
Replaces 400W PSMH
28,000 Lumens
28,000 Lumens
200W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, Dimmable, IP66, RoHS
Black powder-coated, die-cast aluminum housing
1/2" threaded entry for hook suspension or pendant mounting. 1/2" hook included, pendant supplied by others.
Clear polycarbonate
5000K
