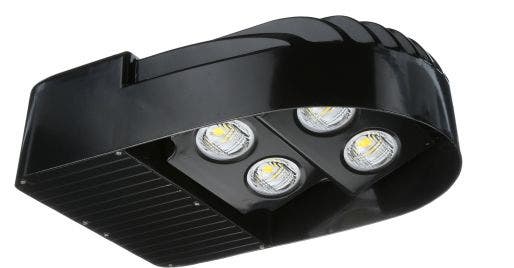

C-Lite LED Area Light | C-AR-A-4LD Series | Type III | 5000K | Dark Bronze
This product has been discontinued
SKU: C-AR-A-4LD-23L-50K-DB
Replaces 400W PSMH
22,700 Lumens
22,700 Lumens
Product Overview
Replaces 400-watt pulse start metal halide (PSMH). 228W LED Area Light – Type III with 22,700 delivered lumens. 5000K, dark bronze, DLC and UL Listed, 5-year limited warranty. Turn this area light into a wall pack with the purchase of the back box (see accessories).
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: E-APA23A Download File
- IES: E-APA23A-C350Z Download File
- Spec Sheet: E-APA23A Download File
- IES File: C-AR-A-4LD-23L-50K-DB Download File
- Instruction Manual: C-AR-A-2LD C-AR-A-4LD Series Download File
- Spec Sheet: C-AR-A-4LD Series Download File
Specifications
- Applications General Area Lighting, Parking Areas, Roadways
- Certifications UL Listed, DLC Standard, Wet Locations
- Color Temperature (CCT) 5000K
- Color Accuracy ≥ 70 CRI
- Housing Low copper, die-cast aluminum housing, Dark bronze polyester powder-coat finish
- Lens Material Tempered glass lens is thermal, shock and impact resistant, Patented lens design delivers IES Type III distribution
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 22,700 Lumens
- Mounting Details Fixture comes without mounting (sold separately), For use in 0° orientation (downlight position) only
- Power Consumption 228W
- Replaces 400W PSMH
- Shipping Weight 30.67 (lbs.)
- Typical Mounting Height 20 to 30 feet
- warranty 5 Year
