C-Lite LED Area Light w/ 8-inch Direct Arm Mount | C-AR-A-SAL Series | Type 3 | 14,500 Lumens | 100W | 5000K | Bronze
$139.99
SKU: C-AR-A-SAL3-14L-50K-UL-BZ-DM
Replaces 400W MH
14,500 Lumens
14,500 Lumens
Product Overview

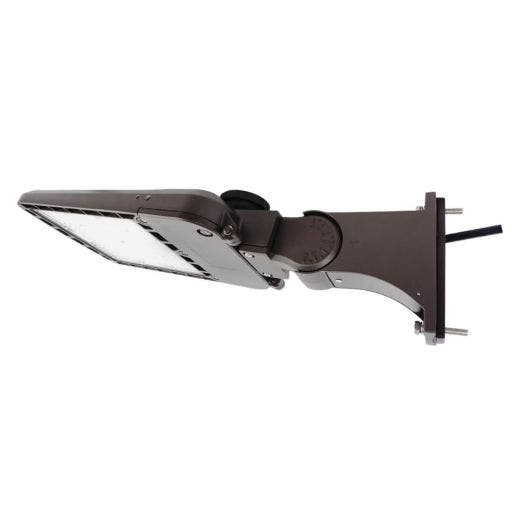

Replaces 400W PSMH. 100W C-Lite LED Area Light with 8-inch direct arm mount, 7-pin photocell receptacle, type 3 distribution, up to 14,500 delivered lumens, 5000K, cULus Listed, 5-year limited warranty.
Additional Benefits:
- Includes 7-pin receptacle which complies with ANSI C136.41 standards (7-pin receptacle supports classic 3-pin standard photocells, as well as "smart" photocells for more advanced control strategies)
- Shorting cap included
- 8-inch direct arm mount included
- Photometric data available
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: C-AR-A-SAL3-14L-50K Download File
- Spec sheet: C-AR-A-SAL Series with mount Download File
- Instruction Manual: C-AR-A-SAL Series Download File
- Difference between area light distribution patterns (Type III, Type IV, Type V) explained Download File
Specifications
- Applications General Area Lighting, Parking Areas, Perimeter Lighting
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Certifications cULus, Wet Locations, Dimmable, RoHS
- Color Accuracy >70 CRI
- Dimensions 16" L x 10" W x 4-3/8" H
- Housing Bronze, durable aluminum extruded heat sink and die-cast housing
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated UV stabalized polycarbonate diffuser lens with type 3 optical distribution
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 14,500 Lumens
- Mounting Details Comes with 8-inch direct pole mount to mount directly to a round or square pole. (Square poles must be greater than 4". Round poles must be in a diameter ranging from 4" to 5"). Max. tilt is 10°. Direct arm is for use with the C-AR-A-SAL Series only.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 100W
- Replaces 400W MH
- Shipping Weight 7.30 (lbs.)
- Typical Mounting Height 15 to 25 feet
- warranty 5 year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-AR-A-SAL3-14L-50K-UL-BZ-DM
Replaces 400W MH
14,500 Lumens
14,500 Lumens
100W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, Dimmable, RoHS
Bronze, durable aluminum extruded heat sink and die-cast housing
Comes with 8-inch direct pole mount to mount directly to a round or square pole. (Square poles must be greater than 4". Round poles must be in a diameter ranging from 4" to 5"). Max. tilt is 10°. Direct arm is for use with the C-AR-A-SAL Series only.
Integrated UV stabalized polycarbonate diffuser lens with type 3 optical distribution
5000K
E-APR17B-T350B
100W
Universal (120V - 277V)
3 year
N/A
UL Listed, Wet Locations, Dimmable, RoHS
Powder coated bronze die-cast alumimnum housing
Choose between the 2-inch adjustable slip fitter mount (E-APR-B-SF-MNT) or the adjustable direct arm mount (E-APR-B-DIR-MNT).
UV stabilized polycarbonate Lens
5000K
FXCAL100-850-BZ-3S
Replaces 400W MH
14,100 Lumens
14,100 Lumens
100W
Universal (120V - 277V)
5 Year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, IP65, Title 24, RoHS
Bronze, die-cast aluminum
Mounting sold separately; Pole mount, 2-inch adjustable slip fitter, yoke mount or wall mount
UV-resistant polycarbonate lens
5000K
