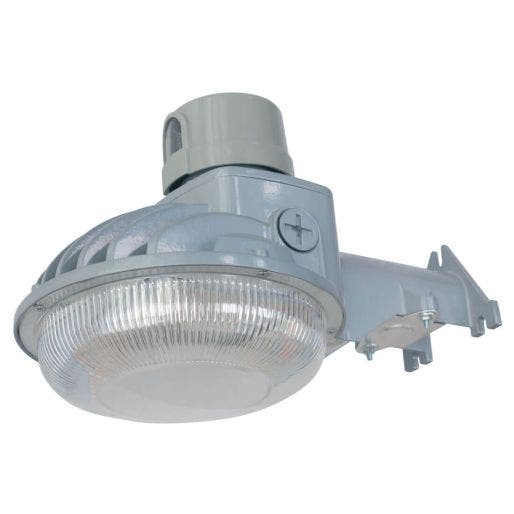

C-Lite LED Dusk to Dawn w/ Photocell | CCT & Wattage Selectable | C-AR-A-DD1 Series | Up to 8900 Lumens | Gray
$89.99
SKU: C-AR-A-DD1-S9L-SCCT-GR
Replaces 250W MH
Up to 8900 Lumens
Up to 8900 Lumens
Product Overview
Replaces 250W MH. 54W C-Lite LED Dusk to Dawn with Photocell, up to 8900 lumens, gray housing. Field selectable wattage options: 54W, 41W or 27W. Field selectable CCT options: 3000K, 4000K or 5000K, cULus Listed, 5-year warranty.
Additional Benefits:
- Up to 162 LPW (Lumens Per Watt)
- Included rotatable twist-lock photocell
- CCT & Wattage selectable technology
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-AR-A-DD1 Series Download File
- IES Files: C-AR-A-DD1-S9L-SCCT-GR Download File
- Instruction Manual: C-AR-A-DD1 Seires Download File
Specifications
- Applications General Area Lighting, Security, Yard & Dock Illumination
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 4
- Certifications cULus, DLC Premium, RoHS, Wet Locations
- Color Temperature (CCT) Selectable
- Color Accuracy ≥ 70 CRI
- Dimensions 12" L x 7-5/8" W x 7-3/4' H
- Housing Gray, rugged die-cast aluminum housing with long-lasting powder-coat finish
- Input Voltage Universal (120V - 277V)
- Lens Material UV-stabilized acrylic prismatic refractor with white polycarbonate reflector
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 8900 Lumens
- Mounting Details Can be mounted to pole arm diameter ranging in size from 1.57" to 1.77" (standard size). Direct mount & clamp (for mounting to existing arm) is included. Mounting arm sold separately.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Up to 54W
- Replaces 250W MH
- Shipping Weight 4.62 (lbs.)
- Typical Mounting Height 12 to 30 feet
- warranty 5 Year
