C-Lite LED Flood Light w/ 1/2-inch Adjustable Fitter Mount | CCT & Wattage Selectable | Photocell Included | C-FL-A-FLW Series | Up to 3500 Lumens | Dark Bronze
This product has been discontinued
SKU: C-FL-A-FLW-S3L-SCCT-FT-DB
Replaces 100W PSMH
Up to 3500 Lumens
Up to 3500 Lumens
Product Overview

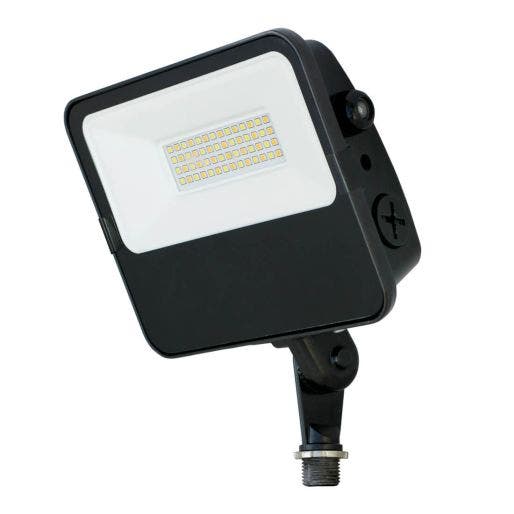

Replaces 100W PSMH. C-Lite LED Flood Light w/ 1/2-inch adjustable fitter, included button photocell, wattage selectable up to 22W, up to 3500 delivered lumens, CCT selectable (3000K, 4000K or 5000K), cULus Listed, dark bronze, 5-year limited warranty.
Additional Benefits:
- Designed and built to last: surpassed rigorous Cree Lighting® testing
- Selectable CCT with a small switch
- Included button photocell with an on/off switch
- 4kV Surge Protection
- Wattage selectable to 75% or 50% lumen output
- Mounting installed prior to shipment
- Product includes photocell (S3L, S5L, S8L Series)
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-FL-A-FLW Series Download File
- Instruction Manual: C-FL-A-FLW Download File
- IES File: C-FL-A-FLW-S3L-SCCT_3000K Download File
- IES File: C-FL-A-FLW-S3L-SCCT_4000K Download File
- IES File: C-FL-A-FLW-S3L-SCCT_5000K Download File
- Informational Chart: NEMA Beam Spread Classification Types Download File
Specifications
- Applications Building Facades, Security, Signs & Monuments
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Wet Locations, DLC Premium, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 2-1/4" D x 7-7/8" W x 9-1/2" H
- Housing Dark bronze, durable die-cast aluminum housing that helps dissipate the heat to ensure a long life.
- Input Voltage Universal (120V - 277V)
- Lens Material Shatter resistant tempered glass lens that won't yellow or crack over time
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 3500 Lumens
- Mounting Details 1/2-inch adjustable fitter mount (comes with 7-inch wires)
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Selectable, up to 22W
- Replaces 100W PSMH
- Shipping Weight 2.35 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5-Year
Accessories
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-FL-A-FLW-S3L-SCCT-FT-DB
Replaces 100W PSMH
Up to 3500 Lumens
Up to 3500 Lumens
Selectable, up to 22W
Universal (120V - 277V)
5-Year
cULus, Wet Locations, DLC Premium, RoHS
Dark bronze, durable die-cast aluminum housing that helps dissipate the heat to ensure a long life.
1/2-inch adjustable fitter mount (comes with 7-inch wires)
Shatter resistant tempered glass lens that won't yellow or crack over time
Selectable, 3000K, 4000K, 5000K
savr® LED Flood Light w/ ½-Inch Adj. Fitter and Photocell | CCT & Wattage Selectable | E-FLA Series | 3600 Lumens | 27W | Bronze | 12-Pack Your Price $699.99 $719.99
$58.33 EACH, PACK OF 12
E-FLA04A-6SCCTBZP-12
Replaces 100W MH
Up to 3600 Lumens
Up to 3600 Lumens
27W
Universal (120V - 277V)
3 year
UL Listed, Wet Locations, Dimmable, RoHS, IP65
Bronze, rugged single-piece die-cast aluminum housing with integral heat sink fins. Housing has direct contact with driver to help maintain low temp. & long lifespan; completely sealed against moisture and environmental contaminants.
Yoke Mount with 13-3/4" SJTW 18/3C power cord
Tempered Glass
Selectable, 3000K, 4000K, 5000K
E-FLA04A-6SCCTBZP
Replaces 100W MH
Up to 3600 Lumens
Up to 3600 Lumens
27W
Universal (120V - 277V)
3 year
UL Listed, Wet Locations, Dimmable, RoHS, IP65
Bronze, rugged single-piece die-cast aluminum housing with integral heat sink fins. Housing has direct contact with driver to help maintain low temp. & long lifespan; completely sealed against moisture and environmental contaminants.
Yoke Mount with 13-3/4" SJTW 18/3C power cord
Tempered Glass
Selectable, 3000K, 4000K, 5000K
C-FL-B-RDW-2L-40K-DB
Replaces 70W MH
2800 Lumens
2800 Lumens
22W
Universal (120V - 277V)
5 Year
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
Heavy duty die-cast aluminum
Includes a 1/2" adjustable fitter, 6-inch wires coming out from bottom of adjustable fitter
Tempered glass lens
4000K
C-FL-B-RDW-2L-50K-DB
Replaces 70W MH
2800 Lumens
2800 Lumens
22W
Universal (120V - 277V)
5 Year
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
Heavy duty die-cast aluminum
Includes a 1/2" adjustable fitter, 6-inch wires coming out from bottom of adjustable fitter
Tempered glass lens
5000K
C-FL-B-RDW-2L
Replaces 70W MH
2800 Lumens
2800 Lumens
22W
Universal (120V - 277V)
5 Year
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
Heavy duty die-cast aluminum
Includes a 1/2" adjustable fitter, 6-inch wires coming out from bottom of adjustable fitter
Tempered glass lens
N/A
LED-FXFDL15-77-CCT3-BZ-YK
Replaces 100W PSMH
1900 Lumens
1900 Lumens
15W
Universal (120V - 277V)
5 year
UL Listed, Wet Locations, Dimmable, DLC Standard, RoHS, IP65
Bronze, die-cast aluminum
Included with a yoke mount and 16-inch SO cord for easy installation. 1/2" adjustable fitter sold separately as an accessory.
Polycarbonate
Selectable, 3000K, 4000K, 5000K
LED-FXFDL30-77-CCT3-BZ-YK
Replaces 150W PSMH
4100 Lumens
4100 Lumens
30W
Universal (120V - 277V)
5 year
UL Listed, Wet Locations, Dimmable, DLC Standard, RoHS, IP65
Bronze, die-cast aluminum
Included with a yoke mount and 16-inch SO cord for easy installation. 1/2" adjustable fitter sold separately as an accessory.
Polycarbonate
Selectable, 3000K, 4000K, 5000K
C-CP-D-SQ-S13L
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Up to 88W
Universal (120V - 277V)
5 year
cULus, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
Dark bronze or white, low copper die-cast aluminum housing, polyester powder-coat
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting
UV-stabilized acrylic lens
N/A
