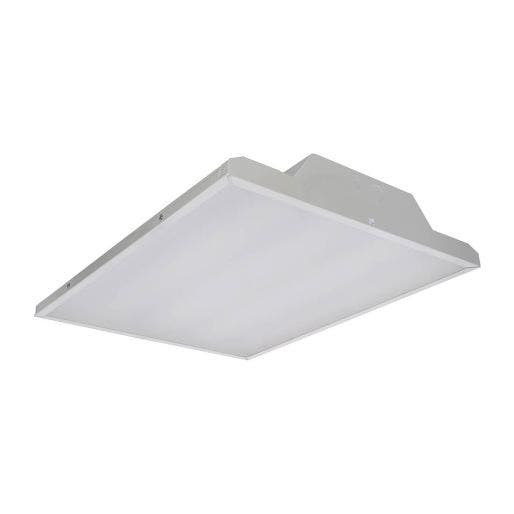

C-Lite LED Linear High Bay Light | C-PHB-C-L2F Series | 31,000 Lumens | 5000K | White | 120-277V
This product has been discontinued
SKU: C-PHB-C-L2F-31L-50K-UL-WH
Replaces 6 x F54T5HO
31,000 Lumens
31,000 Lumens
Product Overview
Replaces 6 x F54T5HO. 214W C-Lite LED Linear High Bay with 31,000 delivered lumens. 4000K, white, cULus Listed, 5-year limited warranty.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: C-PHB-C-L2F Series Download File
- Spec sheet: C-PHB-C-L2F Series Download File
- IES File: C-PHB-C-L2F-31L-50K-UL Download File
Specifications
- Applications Gymnasium, Industrial, Manufacturing, Retail, Warehouses
- Emergency Backup No
- Certifications cULus, Damp Locations, DLC Premium
- Color Accuracy ≥ 80 CRI
- Dimensions 23-3/4" L x 19" W x 3-1/4" H
- Housing Steel construction, white polyester powder-coat finish
- Input Voltage Universal (120V through 277V Operation)
- Lens Material Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency on the product
- Lifespan Estimated >50,000 Hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 31,000 Lumens
- Mounting Details V-hook (included). Chain or Pendant mount supplied by others to accommodate desired length.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 214W
- Replaces 6 x F54T5HO
- Shipping Weight 10.56 (lbs.)
- Typical Mounting Height 25-40 feet
- warranty 5 Year
