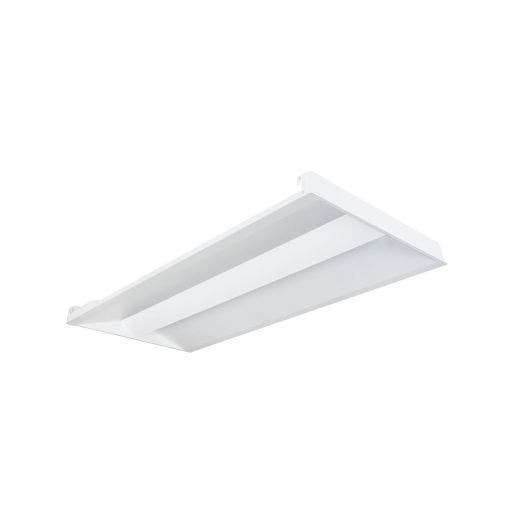

C-Lite LED Troffer w/ Adjustable Color Temperature and Wattage | 2' x 4' | C-TR-B-BT-SCCT Series | Up to 4200 Lumens | White
$87.99
SKU: C-TR-B-BT24-S42L-SCCT-UL-WH
Replaces up to 3 x F32T8
Up to 4200 Lumens
Up to 4200 Lumens
Product Overview
Replaces up to 3 x F32T8. Wattage Selectable (25W/30W/34W) and color temperature (CCT) selectable (3500K/4000K/5000K), 2' x 4' LED Troffer with up to 4200 delivered lumens. White, cULus Listed, 5-year limited warranty.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: C-TR-B-BT24-SCCT Series Download File
- IES File: C-TR-B-BT24-S42L-SCCT-UL-WH (25W) Download File
- IES File: C-TR-B-BT24-S42L-SCCT-UL-WH (30W) Download File
- IES File: C-TR-B-BT24-S42L-SCCT-UL-WH (34W) Download File
- Instruction Manual: C-TR-B-BT-SCCT Series Download File
Specifications
- Light Output Up to 4200 Lumens
- Power Consumption 25W/30W/34W
- Input Voltage Universal (120V through 277V Operation)
- Dimensions 47-3/4" L x 23-3/4" W x 2-3/4" H
- Shipping Weight 12.54 (lbs.)
- Housing Steel construction, white polyester powder-coat finish
- Finish Color White
- Case Quantity 2
- Mounting Details Recessed, installs into conventional grid ceilings
- Typical Mounting Height 8-12 Feet
- Certifications cULus, Damp Locations, Dimmable, DLC Premium, RoHS
- warranty 5 Year
- Color Accuracy ≥ 80 CRI
- Lens Material Flexible polycarbonate lens
- Lifespan Estimated >50,000 Hours of maintenance-free operation to L70 at 25°C (77°F)
- Applications Commercial, Educational Setting, Retail
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-TR-B-BT24-S42L-SCCT-UL-WH
Replaces up to 3 x F32T8
Up to 4200 Lumens
Up to 4200 Lumens
25W/30W/34W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
2
Steel construction, white polyester powder-coat finish
Recessed, installs into conventional grid ceilings
Flexible polycarbonate lens
Selectable, 3500K, 4000K, 5000K
C-TR-B-BT24-S42L-SCCT-UL-WH-EB
Replaces up to 3 x F32T8
Up to 4200 Lumens
Up to 4200 Lumens
25W/30W/34W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
2
Steel construction, white polyester powder-coat finish
Recessed, installs into conventional grid ceilings
Flexible polycarbonate lens
Selectable, 3500K, 4000K, 5000K
C-TR-B-BT24-S56L-SCCT-UL-WH
Replaces up to 4 x F32T8
Up to 5600 Lumens
Up to 5600 Lumens
34W/38W/45W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
2
Steel construction, white polyester powder-coat finish
Recessed, installs into conventional grid ceilings
Flexible polycarbonate lens
Selectable, 3500K, 4000K, 5000K
C-TR-B-BT24-S56L-SCCT-UL-WH-EB
Replaces up to 4 x F32T8
5600 Lumens
5600 Lumens
34W/38W/45W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Premium, RoHS
2
Steel construction, white polyester powder-coat finish
Recessed, installs into conventional grid ceilings
Flexible polycarbonate lens
Selectable, 3500K, 4000K, 5000K
