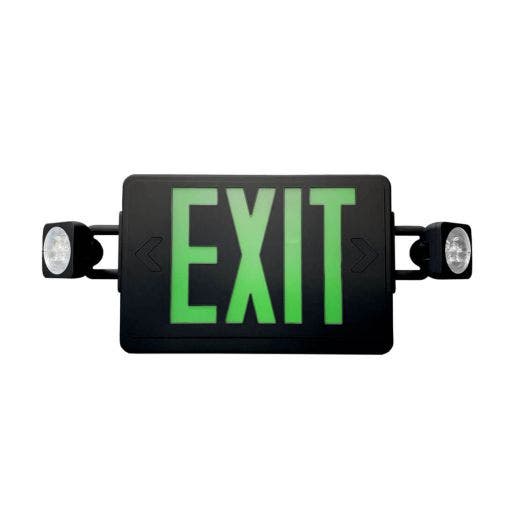

C-Lite LED Exit & Emergency Light Combo | Battery Backup | Green Letters | Black
Ships in: 3-5 Days
$54.99
SKU: C-EE-B-EX-2LDF-GRN-BB-BK
Product Overview
C-Lite LED Exit & Emergency Light Combo with black housing. Green letters, single or double face, battery backup, UL listed, 5-year limited warranty.
Additional Benefits:
- Includes sealed, 3.6V maintenance-free nickel cadmium battery backup (90 min.), hardware and mounting plate
- Meets Title 20, UL924, NFPA 101 Life Safety Code, NEC & OSHA codes
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec sheet: C-EE-B-EX-2LDF Series Download File
- Instruction Manual: C-EE-B-EX-2LDF Series Download File
- IES File: C-EE-B-EX-2LDF and C-EE-B-EMG-2L-BB Series Download File
Specifications
- Applications General Purpose Emergency Lighting
- Emergency Backup Yes
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications UL Listed, Damp Locations, Title 20
- Dimensions 17" L x 8" H x 3" D
- Housing High-impact resistant thermoplastic in black finish. Injection-molded, engineering grade, 5VA flame retardant.
- Input Voltage 120V or 277V
- Light Output 154 Lumens
- Mounting Details Snap-in canopy plate provided for top and side/end mounting. Back faceplate with universal knock-out pattern provided for surface mount
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum 32°F (0°C)
- Power Consumption 1.2W
- Shipping Weight 3.00 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5 year
